Laser Level for Pool Table Installation: 2026 Guide
Sep 03, 2026
Levelling a pool table with a laser level means projecting one fixed reference line across the frame and slate bed instead of walking a bubble level from corner to corner, so every panel, joint and cushion rail gets checked against the same datum. A DIY installer working in a games room or garage has a shorter run than a groundworker on a foundation - usually 2 to 3 metres - but the tolerance for error is tighter, because a pool table that's out by even a small amount will roll a ball off a dead-straight shot every time.
- A cross-line laser level for pool table installation projects one reference line across the whole bed, catching drift a moved bubble level misses.
- Level the frame first, then each slate panel individually before the joints are waxed - not the other way round.
- The Grettz G2D mini cross-line laser suits most home installs; the Grettz G4D multi-line kit adds a vertical line for checking cushion rails square to the bed.
- A digital spirit level like the Grettz GL120 reads to a decimal degree, useful for confirming a laser reading on individual slate panels.
- Skipping a post-assembly roll test is the most common reason a table plays true on day one then drifts within weeks.
Why laser levels matter for pool table installation
A three-piece slate bed is levelled panel by panel, then the joints are filled with wax before the cloth goes on. Once that wax sets, correcting a high or low panel means stripping the cloth and starting again. A mini cross-line laser solves the problem a bubble level can't: it holds one line across all three panels at once, so a panel sitting proud of its neighbours shows up immediately instead of after the wax has gone hard.
Most DIY installers search for this because they've already had one bad experience - a table that rolls balls toward one pocket, or cushions that don't cannon true. That's almost always a levelling fault from the install, not a fault in the table itself. A laser reference line catches it before the felt goes on, which is the only point it's cheap to fix.
How to level a pool table with a laser level
Check the room floor and stand first
Before anything touches the frame, confirm the floor itself isn't the problem. A table can be levelled perfectly and still play wrong if the floor deflects under load once the slate and frame are fully assembled.
- Run a straightedge across the floor area under the table footprint to spot dips or high points
- Check for a soft or bouncy floor, especially on suspended timber floors in older UK houses
- Confirm all leg levellers or feet on the stand turn freely before assembly
- Note whether the floor is carpeted - carpet pile compresses unevenly under leg pads over time
Level the frame before fitting the slate
Get the bare frame level on all four corners and the centre rail before any slate goes on top. This is the one step that sets the baseline for everything after it.
- Check each corner with a standard bubble level as a first pass
- Adjust leg levellers corner by corner, rechecking the opposite corner after each turn
- Set a cross-line laser level on a tripod at table height and read the beam against all four rails at once - this is where a laser earns its keep over a bubble level, because you're comparing four points to one fixed line instead of four separate readings
- Recheck the centre rail, not just the corners - frames can bow slightly in the middle
True each slate panel individually
Each of the three slate panels needs its own check, not just an average across the bed. A panel can be dead level on its own and still sit slightly proud where it meets its neighbour.
- Place a 1200mm digital spirit level across each panel individually and read the digital display rather than eyeing a bubble
- Shim under low corners with thin card or slate shims, never anything compressible
- Check each panel against the laser line set up in the previous step, not against the panel beside it
- Record each panel's reading before moving to the next - it saves rechecking work later

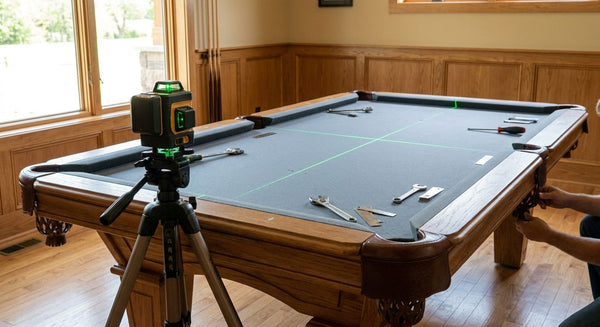

Project one reference line across the whole bed
Once all three panels read level individually, confirm they agree with each other. This is the step a bubble level genuinely can't do well, because moving it panel to panel loses the fixed reference.
- Set a green beam multi-line laser kit on its tripod at one end of the table so the horizontal line runs the full length of the bed
- Check the line height against all three panels at multiple points along each one, not just the centre
- Use the vertical line on the same unit to confirm the panels sit square to each other at the joints, not just level
- Mark any panel that reads off the line before moving to shimming
Shim the joints and re-check
Any panel reading off the laser line gets shimmed now, before the joints are filled. This is the last point where a correction is quick.
- Lift the panel slightly and slide a thin shim under the low corner
- Recheck against the laser line immediately after each shim adjustment
- Work joint by joint rather than trying to fix all three panels at once
- Confirm the full bed reads flat against the line before filling the joints with wax
Fit and check the cushion rails
Cushions get fitted after the bed is confirmed level. A rail that's fractionally high or low relative to the bed will cannon a ball off-line even on a perfectly level slate.
- Fit the rails loosely first and check them against the bed with a straightedge
- Confirm each rail sits parallel to the cushion facing opposite it
- Recheck rail height against the laser line once the rails are tightened down fully, not just hand-tight
- Check the pocket openings line up evenly with the rail cushions on both sides
Run the final roll test
A level reading on a tool is not the same as a table that plays true. Roll a ball and watch what actually happens on the cloth.
- Roll a ball slowly from each corner toward the centre and watch for drift
- Repeat down the long rail and the short rail separately
- Leave a ball stationary at the centre spot and watch for any creep after a minute
- If drift shows up anywhere, go back to the laser check on that section rather than adjusting by eye
Which tool to use for pool table installation
| Option | Best for | Key limitation |
|---|---|---|
| Standard bubble spirit level | Single-panel checks, tight budgets | No fixed reference across the full bed - readings shift as you move it |
| Digital spirit level (Grettz GL120) | Confirming exact readings on individual slate panels | Still needs moving panel to panel, same as a bubble level |
| Cross-line laser (Grettz G2D) | Most home installs on one table | Single horizontal/vertical line pair, no long-range self-levelling needed indoors anyway |
| Multi-line laser kit (Grettz G4D) | Checking the full bed and cushion squareness in one setup | Needs a tripod and a bit more room to set up than a handheld unit |
A cross-line laser is the right call for a single home pool table installation in 2026 - a rotary laser built for site groundworks is more tool than the job needs indoors.
Common mistakes with pool table installation
- Levelling the frame only, then assuming the slate follows suit. Each panel needs its own check even after the frame reads perfectly level.
- Filling slate joints with wax before a final cross-check. Once wax sets, a correction means stripping cloth and reopening joints.
- Trusting one corner reading instead of checking all four plus the centre. A frame can read level at three corners and still be out at the fourth.
- Skipping the roll test after the cushions go on. Cushion rail tension can lift a rail fractionally even when the bed underneath is dead level.
- Ignoring floor deflection once the table is fully loaded. A floor that reads flat empty can dip slightly once 300kg-plus of slate and frame sits on it.
FAQ
What's the best laser level for pool table installation?
A cross-line laser level like the Grettz G2D suits most home pool table installs, projecting a fixed horizontal reference across all three slate panels at once. A multi-line kit such as the Grettz G4D adds a vertical line, useful for checking cushion rails square to the bed.
Do I need a laser level to install a pool table, or will a spirit level do?
A bubble spirit level can level a single panel on its own, but it loses its reference the moment you lift it to check the next panel. A laser level holds one line across the whole bed, which is what actually catches a panel sitting proud of its neighbours.
How level does a pool table slate need to be?
Level enough that a ball placed anywhere on the cloth stays put rather than drifting on its own. There's no single published tolerance across all manufacturers, so the practical test is the roll test, not a number on a display.
Can I use a cross-line laser indoors for a pool table?
Yes, an indoor cross-line laser is built for exactly this - short indoor distances and a fixed bright beam. A rotary laser designed for outdoor groundworks is unnecessary for a single table in a games room.
Should I level the frame or the slate first?
Level the frame first on all four corners and the centre rail, then level each slate panel individually against that base. Skipping the frame check first means shimming the slate to compensate for a frame fault, which shows up again later.
Is a rotary laser level overkill for pool table installation?
For a single indoor table, yes. A rotary laser is built for long-range outdoor site work and adds setup time a compact cross-line laser doesn't need for a 2 to 3 metre bed.
How do I check if my pool table is still level after months of use?
Run the same roll test used at installation - roll a ball from each corner and watch for drift, then leave a ball stationary at the centre spot for a minute. A laser line rechecked against the bed will show if a leg leveller has shifted.
One last thing
The joint between slate panels is where most installs actually go wrong, not the frame. A laser line running the full length of the bed shows a proud panel edge instantly - a bubble level moved from panel to panel can miss it completely, because each reading looks fine on its own until you compare them side by side.
