Cross Line Laser Level for Picture Rails: 2026 Verdict
Sep 03, 2026

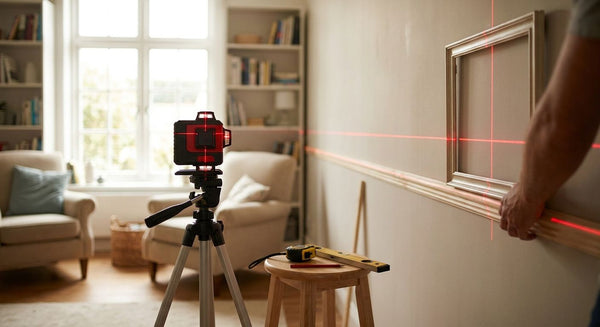

A cross line laser level for picture rails and dado rails is a self-levelling tool that projects one dead-horizontal and one dead-vertical laser line onto an interior wall, so every bracket goes up at the same height without a pencil mark every 300mm. Picture and dado rail installers work at close range indoors, usually 3-5 metres across a domestic room, and need a laser that self-levels fast, holds its line under normal room lighting, and lets one person mark a whole wall run without a helper holding string.
- A cross line laser level for picture rails needs to self-level indoors at 3-5m range, not long outdoor distances.
- The Grettz G2D Mini cross line laser is the pick for single-room rail jobs in 2026 — compact and pivots on its bracket.
- Green beam models like the Grettz G4D show up better than red beam under normal room lighting for long dado runs.
- A pencil, spirit level and string line still work for a single wall — the laser earns its keep on multi-wall rooms.
Why a cross line laser matters for picture and dado rail jobs
Rail installers searching for a cross line laser level for picture rails are not buying the same tool as a groundworker setting datums across a site. The job is indoors, the run is usually one or two rooms, and the laser has to stay visible against wallpaper, paint, and picture frames rather than concrete or timber. A wonky picture rail is obvious the moment furniture goes back against the wall, so the tolerance for error here is tighter in practice than most site levelling jobs, even though the distances are shorter.
The other constraint is hands. Most people fit rails alone, with a laser doing the job a second pair of hands and a chalk line used to do. That means self-levelling speed and a bracket that pivots to project onto adjacent walls both matter more than working range.
Mark your datum line by hand first
Before any laser goes on the wall, establish where the rail actually needs to sit. This is free and it catches sloping ceilings and skirting before you buy anything.
- Measure down from the ceiling at both ends of the wall and note any difference
- Use a 1200mm spirit level to check the floor isn't feeding you a false reference
- Mark your intended rail height on two adjacent walls with a pencil
- Check door and window head heights against your marked line
- Decide whether you're levelling to the ceiling, the floor, or an average of both
Choose red beam or green beam for your room
Beam colour decides how easily you can see the line while you're working, not just in the showroom. Green beams appear roughly four times brighter to the human eye than red at the same output, which matters under normal room lighting rather than a dim site cabin.
- Pick green beam for rooms with windows, spotlights, or bright ceiling lights
- Red beam is fine in low-light rooms like hallways or under-stair spaces
- Check the laser class on the box — Class 2 lasers are standard for indoor picture and dado rail work
- If you're working across several rooms in one day, green saves squinting and re-checks
A cross line laser level for picture rails earns its place here because it removes the guesswork a string line leaves behind on a second or third wall.
Set the laser at bracket height and let it self-level
Once the tool is positioned, most self-levelling cross line lasers settle within a few seconds and lock a warning if the wall or floor is too far out of range for the internal pendulum.
- Stand the laser on a tripod or mount it magnetically if the bracket allows
- Position it roughly level with your intended rail height, not on the floor
- Wait for the beam to stop pulsing or flashing before marking anything
- Recheck self-levelling after moving the unit more than a metre
Check square for dado rail corners
Dado rails usually run around a full room, which means internal and external corners need to line up without a step in height. This is where a vertical cross line earns its keep over a horizontal-only laser.
- Use the vertical beam to square the laser off the corner before marking
- Mark both walls at the corner before moving the unit
- Walk the room once with a tape measure to confirm the marked height matches on every wall
- Adjust for any external corner that's slightly out of square rather than forcing the line straight
The Grettz G2D Mini cross line laser is built for exactly this indoor, close-range job — small enough to sit on a windowsill or shelf and still throw a usable line across a standard room.
Transfer the line to brackets without losing accuracy
Marking the wall is only half the job — getting the bracket screw holes to sit exactly on that line is where most rail jobs go wrong.
- Hold a small spirit level against the laser line while marking screw points
- Mark every bracket position before drilling any of them
- Use a laser detector in bright rooms if the line is hard to see at distance
- Double check the line hasn't drifted before marking the last bracket on a long wall
Verify the finished run with a straightedge
A laser line is only as good as the check that follows it. Before fixing the rail permanently, run a straightedge or a digital spirit level along the marked points.
- Lay a straightedge across at least three marked points per wall
- Use a digital spirit level for a numeric readout rather than judging a bubble by eye
- Recheck corners last, since small errors compound over a full room
- Fix any bracket that's more than a couple of millimetres proud before final fixing
Store and check calibration between jobs
A cross line laser that's been dropped or left in a cold van boot can drift out of true without any visible sign until a rail goes up crooked.
- Run a 60-second on-site drift check before starting a job you can't easily redo
- Store the unit in its case rather than loose in a toolbag
- Get the unit serviced periodically rather than waiting for an obvious fault
- Note the date of last calibration somewhere you'll actually check it
Comparing your options for picture and dado rail work
| Option | Best for | Key limitation |
|---|---|---|
| Pencil, spirit level and string line | A single short wall, no budget for tools | Slow across multiple walls, no self-levelling |
| Grettz G2D Mini cross line laser | Single-room DIY jobs, tight budgets | Shorter working range than full-size units |
| Grettz G4D multi-line laser | Multi-wall rooms, brighter room lighting | Larger unit than the mini, more than a single-wall job needs |
| Digital spirit level (Grettz GL60/GL120) | Verifying a laser-marked line numerically | Doesn't project a line across the room on its own |
Verdict: the Grettz G2D Mini cross line laser is the pick for a single-room picture or dado rail job in 2026 — it self-levels, projects both lines, and doesn't need a tripod set up in the middle of a lounge.
Common mistakes on picture and dado rail jobs
- Marking from the floor instead of the ceiling — floors in older UK homes are rarely level, and a floor-referenced line telegraphs the slope straight onto the rail
- Skipping the self-level wait — marking a bracket before the pendulum has settled bakes in an error that only shows up once furniture goes back
- Ignoring beam colour for the room — a red beam under bright spotlights disappears exactly when you need to see it most
- Not checking corners twice — dado rails that meet at a corner amplify small errors from opposite walls into a visible step
- Fixing brackets before verifying the full run — screwing in as you go instead of marking everything first means one bad measurement forces a rework of the whole wall
“If the laser line disappears under your room lighting, you're using the wrong beam colour, not the wrong tool.”
Getting the mount right matters as much as the laser itself — a unit resting unevenly on a shelf will report a false level even while self-levelling. Grettz's guide on mounting a laser level indoors covers tripod alternatives for rooms without a clear floor space.
FAQ
What's the best cross line laser level for picture rails?
The Grettz G2D Mini cross line laser is the best fit for most picture and dado rail jobs in 2026 because it self-levels quickly and works at the 3-5 metre range typical of a domestic room. Larger multi-line units like the Grettz G4D suit bigger rooms or brighter lighting where a stronger green beam helps.
Is a green beam laser better than red for indoor rail work?
Green beam lasers appear noticeably brighter to the eye than red at the same output, which makes them easier to see under normal room lighting. Red beam still works fine in dimmer spaces like hallways or landings.
Do I need a tripod for a picture rail laser level?
Not always — compact units like the Grettz G2D Mini can sit on a shelf, windowsill or magnetic mount for a single-wall job. A tripod helps when you're squaring off a corner or working across an open-plan room.
How accurate does a laser need to be for picture rails?
A self-levelling cross line laser gives you a consistent reference across the whole wall, which matters more for picture rails than raw accuracy figures since the eye catches even a slight visible slope. Verifying with a straightedge or digital spirit level after marking removes any doubt.
Can I use a rotary laser level for picture rails instead of a cross line?
A rotary laser is built for longer outdoor and site distances and is overkill for a domestic room — a cross line laser is faster to set up and easier to read at close range. Save the rotary laser for foundations, groundworks or larger site layouts.
How do I check if my cross line laser is still accurate?
Run a quick on-site drift check by marking a point at both ends of a wall, rotating the laser 180 degrees, and comparing the marks. If the marks don't match, the unit needs recalibrating or servicing before you trust it on a job.
What's the difference between a picture rail laser and a dado rail laser?
There's no separate tool — the same cross line laser level works for both, since the only difference is the height you're marking on the wall. Dado rails run lower and often wrap around more corners, which is where the vertical square-check line matters more.
One last thing
Most picture rail jobs fail on lighting, not levelling — a laser that reads perfectly level in a dim hallway can wash out completely under a bright bay window, which is exactly why green beam has become the default choice for indoor cross line work by 2026. Check the room's lighting before you check the laser's spec sheet.
