Laser Level for Handrail Installation: 2026 Verdict
Sep 01, 2026
Handrail and balustrade laser levels are cross-line or multi-line units used to mark consistent post heights and rail gradients across a staircase or landing run, with the aim of getting every post plumb and every rail line straight on the first fix. This guide covers the laser level for handrail installation methods that keep timber, glass and metal balustrades level without redrilling a single bracket.
- The Grettz G4D green beam multi-line laser is the best laser level for handrail installation on full balustrade runs in one setup.
- A Grettz G2D mini cross line laser suits single-post checks and runs under 3m where a full multi-line kit is overkill.
- A digital spirit level like the Grettz GL120 checks individual post plumb over full post height faster than a bubble vial.
- Cross-check every laser reading with a tape measure before drilling — a bowed wall fools the beam, not the tape.
Why a laser level matters for handrail and balustrade fitters
A handrail run only looks straight if every post reads off one datum, not off the tread underneath it. Miss one post by a few millimetres and the rail visibly kinks by the third or fourth fixing point — customers notice a wandering rail line faster than an out-of-plumb newel.
UK Building Regulations Approved Document K sets minimum guarding heights for stairs and landings, and a rail that dips below spec at any point fails inspection regardless of how good the rest of the run looks. That's the same discipline covered in setting out a staircase with a laser level — the datum comes first, the fixing comes second, every single time.
Balustrade work compounds the problem. Glass panels, metal spindles and timber infill all read differently under a beam in a bright stairwell, and a laser that's drifted by even a degree throws every post height off by the time you reach the top riser. This matters more on 2026 refurb sites than new-builds, where existing walls are rarely as straight as the drawing suggests.
Setting out and checking a run before you fix anything
A handrail or balustrade installation lives or dies on the datum you pick before the first bracket goes up. Work through these checks in order and the laser level does the transfer work; skip a step and no laser fixes it after the fact.
Check the fixing line before you drill anything
Confirm the wall and the drawing agree before a single hole gets marked. This is the manual check that costs five minutes and saves an afternoon of unscrewing brackets.
- Run a stringline or chalk line along the proposed bracket line to confirm the wall reads straight before marking post centres.
- Measure total run length against the drawing at both ends and the midpoint, not just corner to corner.
- Check the wall for bow with a straight edge — a laser beam follows the wall's actual surface, it does not correct for it.
- Mark datum points in pencil, not chalk that rubs off mid-fix.
- Note any structural obstruction (newel cap, dado rail, socket) that will interrupt the line before you commit to a height.
Set one consistent height datum for every post
Pick a single reference point and hold it for the whole run, not one post at a time.
- Use finished floor level as the datum, not the nearest tread — nosings vary 10-15mm tread to tread on older staircases.
- On timber stairs, measure from the string, not the nosing, for the same reason.

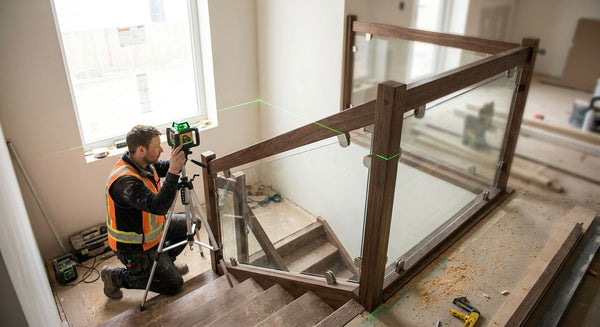

- Project the datum across the whole run with a Grettz G4D green beam multi-line laser instead of transferring a single mark post by post with a tape and a hand level.
- Recheck the datum at the far end before marking a single hole — a laser that's drifted even slightly compounds fast over a 4-5m run.
- Mount the unit on a tripod and pole at a fixed working height so every post reads off the same beam height, not a hand-held guess.
Transfer level marks across long straight sections
Once the datum's set, the job is repeating it accurately at every post without resetting the laser each time.
- Use the laser's cross-line function to mark height and a square reference line at each post position in one pass.
- Green beam lines read clearer than red beam under stairwell lighting, particularly with a skylight overhead.
- For runs under 3m or single-post touch-ups, a Grettz G2D mini cross line laser sets up faster than a full multi-line kit.
- Confirm the beam is landing on the post face itself, not on a trim or handrail bracket that's coming off later.
- Mark each post as you go rather than batching marks from memory at the end of the run.
Check every newel and post for plumb, not just level
A post can read level at the base and still lean out of plumb at rail height — the two checks are not the same thing.
- Hold a Grettz GL120 1200mm digital spirit level against the full face of the post; a shorter vial-only level misses lean over that length.
- Shim before fixing, not after — packing behind an already-fixed bracket stresses the fixing and the timber.
- Recheck plumb after the first fixing screw goes in; torque alone can pull a post a couple of millimetres out of true.
- Check plumb on two faces of square posts, not just the face facing the room.
- On glass balustrade posts, plumb error shows up in the panel gap before it shows up anywhere else — check gap consistency as you go.
Verify the rail gradient on a staircase run
Gradient is a separate check from post height, and skipping it is the most common reason a rail reads wrong even when every post measures correctly.
- Mark the pitch line first with a stringline from nosing to nosing, then set the laser height off that line, not off the floor.
- Check gradient at three points minimum — bottom, midpoint, top — since two points alone can hide a curve a third point catches.
- On winders and half-landings, treat each section as its own run with its own datum check.
- Compare the marked gradient against the drawing before cutting any rail stock to length.
Cross-check with a tape measure before final fixing
Never fix on a laser reading alone. The laser sets the line fast; the tape confirms it's the right line.
- Confirm at least two posts per run with a tape measure against the marked datum before drilling starts.
- On glass balustrade jobs, check panel gaps against spec before trusting the laser line for post spacing — a beam can read level while spacing has drifted.
- Photograph the laser reading at each post before drilling; it's the fastest way to catch a shifted tripod mid-run.
- Recheck the far end of the run one more time once the near end is fixed, in case the tripod's moved.
Recheck after fixing, especially on glass and metal balustrades
The job isn't done when the last screw goes in. Vibration and settling both move posts you've already fixed.
- Drilling near already-fixed posts on glass and metal balustrades transmits vibration — recheck plumb on the last two or three posts before moving to the next section.
- Timber staircases on new-build sites settle slightly in the first weeks after fixing; a snag-list recheck with the same laser catches movement before the client does.
- Store the laser correctly between site visits — temperature swings in an unheated site cabin are a common cause of drift on repeat jobs.
Comparison: which laser level suits which handrail job
No single unit covers every balustrade job on its own — the right pick depends on run length and how many posts you're checking in one visit.
| Option | Best for | Key limitation |
|---|---|---|
| Grettz G4D green beam multi-line laser | Projecting one level line across a full balustrade run | Works best mounted on a tripod and pole, not as a purely handheld tool |
| Grettz G2D mini cross line laser | Single-post checks and runs under 3m | No multi-line spread for long runs — repositioning needed every few metres |
| Grettz GL120 1200mm digital spirit level | Checking individual post plumb over full post height | Doesn't project a line across a run — one post at a time |
Verdict: the Grettz G4D handles the run, the Grettz GL120 handles the individual post, and the Grettz G2D covers the small jobs where a full kit is unnecessary. Most handrail crews carry two of the three, not all three.
Common mistakes handrail and balustrade fitters make
Most balustrade snags trace back to one of these five habits, not to the laser level itself.
- Measuring post height from the tread nosing instead of a fixed datum — nosings vary 10-15mm tread to tread and the rail drifts by the third post.
- Trusting the laser line on a bowed stairwell wall without checking the wall with a straight edge first — the beam reads the wall, not the drawing.
- Switching between red and green beam units without adjusting for stairwell light — a red beam washes out under a skylight and posts get marked off the wrong line.
- Fixing every bracket before doing a mid-run cross-check — by the time the gradient error shows at the top riser, half the brackets are already screwed in.
- Skipping a drift check on a laser that's been dropped or left in a van overnight — cold and knocks are the two most common causes of a laser reading off by a millimetre or two over a run.
FAQ
What's the best laser level for handrail installation?
The Grettz G4D green beam multi-line laser level is the best choice for handrail and balustrade installation because it projects a level line across a full run without repositioning at every post. For single-post checks or runs under 3m, the smaller Grettz G2D mini cross line laser sets up faster.
Do I need a rotary laser for handrail fitting, or is a cross-line laser enough?
A cross-line or multi-line laser is enough for handrail and balustrade work; a rotary laser is built for site-wide levelling over long outdoor distances, not indoor post-to-post transfer. Save the rotary laser for groundworks and foundation setting-out instead.
How accurate does a laser level need to be for balustrade posts?
A laser level used for balustrade posts should read within a millimetre or two per metre of run, checked with a quick drift test before the job starts. Small errors compound fast across an eight or nine-post run, so a laser that's drifted even slightly throws the whole line off by the top riser.
Can I use a laser level for glass balustrade installation?
Yes, a cross-line laser level works for glass balustrade installation, but panel spacing still needs a tape measure cross-check because a beam can read level while spacing drifts. Glass jobs also transmit drilling vibration to posts already fixed, so recheck plumb on the last few posts before moving to the next section.
What's the minimum height for a stair balustrade in the UK?
UK Building Regulations Approved Document K sets minimum guarding heights for stairs and landings, and a rail that dips below spec at any point fails inspection. Check the specific height requirement for the building type before marking post heights, since dwelling and non-dwelling minimums differ.
How do I check a laser level is still accurate before a job?
Run a quick on-site drift check by marking a level point on a wall, rotating the laser 180 degrees, and comparing the new reading against the original mark. A gap of more than a couple of millimetres over a few metres means the laser needs recalibrating before it goes near a balustrade run.
Is a digital spirit level better than a laser level for handrails?
A digital spirit level like the Grettz GL120 is better for checking plumb on an individual post over its full length, while a laser level is faster for transferring one height across several posts at once. Most handrail jobs use both — the laser sets the line, the digital level checks each post against it.
How much rail gradient is acceptable on a staircase?
Rail gradient should track the pitch line consistently from bottom to top with no visible flattening or steepening at any point on the run. Check gradient at the bottom, midpoint and top of the run — two check points alone can hide a curve that shows up only at the third.
One last thing
Grettz runs in-house calibration and servicing on its laser level range, which matters more on handrail work than on most jobs — a beam that's drifted after being dropped on-site won't show up until the eighth or ninth post reads a few millimetres wrong. Run a 60-second on-site drift check before every big balustrade run in 2026, not just when the laser feels off. It's the cheapest insurance on a job where the client can see every post from the bottom stair.
