Best Rotary Laser Level for Basement Conversion (2026)
Sep 01, 2026

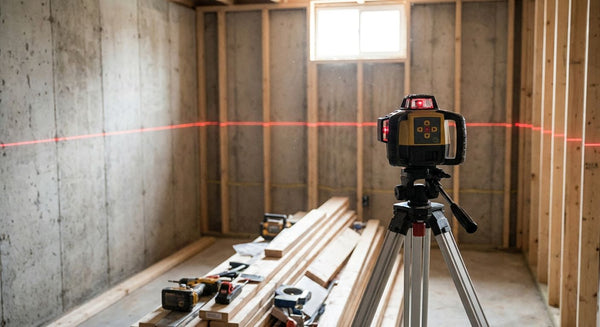

A rotary laser level for a basement conversion is a self-levelling laser set on a tripod in the middle of the room to hold one accurate height reference around every wall, with the aim of getting damp-proofing, screed depth and stud layout right in a space that has no daylight and often less than two metres of headroom. Basement and cellar jobs punish laser choices that work fine outdoors or upstairs — a beam that's barely visible in daylight becomes the easiest reference on site once the lights go down, and a full-height tripod that suits a garage extension won't fit under a joist package at 1.9m.
- Grettz G60 rotary laser level kit is the pick for DPC, screed and floor datums across a whole basement conversion in 2026.
- A dark, windowless cellar makes a rotary laser's beam visible without a laser receiver on most basement setups.
- The G4D green beam multi-line laser handles stud and partition alignment inside one room faster than swapping a rotary between walls.
- Check calibration before you start work in 2026 — drift that's tolerable outdoors compounds fast in a confined basement layout.
“If you can't see the beam without switching off the lights, you've picked the wrong laser for a basement.”
Why this matters for basement and cellar conversions
Basement and cellar conversions change the maths on almost every laser job you've done above ground. There's no natural light competing with the beam, so a rotary laser level's line reads clearly on a wall from across the room without dimming anything. The Grettz G60 rotary laser level kit is built around exactly that low-light advantage indoors — it's the one genuine upside of working underground in 2026.
Everything else works against you. Building regs put a floor under finished ceiling height, and every millimetre lost to screed depth, insulation, or a raised damp-proof membrane eats into that number before plasterboard goes up. Get the DPC and screed datum wrong by even a centimetre and you can tip a habitable room under the minimum.
Headroom also limits the tools themselves. A rotary laser level on a full-height tripod gets awkward to read once you're working under a joist package at 1.9m or less — you need the tripod low, the staff readable, and the beam still landing where you can see it. The same low-ceiling, no-daylight problem shows up in loft and garage conversions; the setup logic in the garage conversion laser level guide carries over almost line for line to a cellar.
Get the datum right once, at the start, and the rest of the basement conversion — stud walls, ceiling grid, floor finish — measures off it without argument.
How to set up a rotary laser level for a basement conversion
Check the datum before you cut a single stud
Before any laser goes on a tripod, work out where the existing floor and ceiling actually sit, not where the drawings say they sit.
- Walk the room with a straight edge and note every high and low point before assuming the slab is flat
- Measure existing ceiling height at the lowest point, not the average, so headroom regs stay accurate
- Confirm where the damp-proof membrane and screed depth will sit before fixing a finished floor level
- Mark a provisional datum line at a fixed height, 900mm is a common working figure, so every other measurement works off one number
- Write the datum height on the wall in pencil, not just in your head, before the rest of the crew shows up
Set your DPC and screed line with a rotary laser
Once you know the target datum, the rotary laser does the repetitive work of getting that same height onto every wall in the room.
- Centre the Grettz G60 rotary laser level kit on its tripod so the beam clears furniture, ductwork or half-built partitions
- Take a reading at your provisional datum mark and adjust the laser height until the beam sits exactly on it
- Walk the staff around every wall and mark the beam height with a pencil line, not a single dot
- Snap a chalk line between marks so plasterers and screeders work off a continuous reference, not four separate points
- Recheck the far corner reading before you leave the room — rotary heads drift slightly on soft or uneven ground
Level partition walls in a room with no daylight
Stud and partition work benefits most from the dark. A green beam that's washed out by a window upstairs reads sharp against basement walls.
- Set the Grettz G4D green beam multi-line laser kit on its own tripod at wall height and let it project a level line and a plumb line together
- Use the vertical line to keep stud positions plumb from floor track to ceiling track without a separate plumb bob
- Mark stud centres against the projected line rather than measuring off a tape held at one end of the wall
- Kill task lighting near the wall if the line gets hard to read against pale plasterboard offcuts
- Recheck the line after fixing the first two studs — timber can pull a track out of true as it's fixed
Keep your setup height right under low headroom
A basement's biggest constraint isn't accuracy, it's clearance. Plan the tripod height before you plan the reading.
- Drop the tripod to its lowest working height so the beam still clears stacked timber and stud packs
- Swap to a shorter pole where headroom drops under 2m rather than compressing the tripod past its rated range
- Use a Grettz GL120 1200mm digital spirit level to check individual joists and lintels where a rotary beam can't reach square into a stud bay
- Keep your eye or the receiver at a consistent height when reading off a low tripod — small height shifts throw the reading off more than they would at full height
- Set tripod legs to matching lengths so you're not fighting a lean every time you reset the unit
Mark falls for drainage and sump pump runs
Sump pumps and gravity drainage in a cellar conversion depend on falls set before the floor goes down, not adjusted after.
- Set your falls from the sump pit outward, not from the far wall inward, so the lowest point ends up where the pump actually sits
- Pull a stringline between temporary pegs at each end of the run and read the fall with a spirit level rather than guessing by eye
- Work to a fall of roughly 1:80 to 1:100 for gravity drainage unless your groundworker specifies otherwise
- Recheck the fall after backfilling — compacted hardcore shifts pipe runs more than people expect
- Photograph the string and level reading before covering the run; it's the only record once concrete goes over it
Verify accuracy before you trust the numbers
A basement magnifies small errors because the room is confined and every wall is close to every other wall.
- Run a quick check against a fixed reference wall before the first read of the day, not after a wall's already marked
- Compare beam height at 1m from the unit and again at 10m — any gap of a few millimetres means recalibration is due
- Keep the unit cased between rooms; basements carry more trip hazards and knocks than sites above ground
- Book a Grettz Service 72 calibration check on a fixed schedule rather than waiting for a job to go wrong
- Log the calibration date on the case itself so nobody on site is guessing
Which laser level suits your basement conversion
| Option | Best for | Key limitation |
|---|---|---|
| Grettz G60 rotary laser level kit | Whole-room DPC, screed and floor datums | Full tripod height awkward under very low ceilings |
| Grettz G4D green beam multi-line laser kit | Stud and partition alignment in one room | Beam range shorter than a rotary across an open basement |
| Grettz G2D mini cross-line laser | Small utility rooms, cupboards under stairs | Two lines only, no rotary sweep for a full room datum |
| Grettz GL120 digital spirit level | Checking individual joists, lintels, short stud runs | Not a substitute for a room-wide datum line |
The G60 rotary laser level kit is the right buy for a full basement or cellar conversion; the G2D earns its keep only on the smallest single-room jobs.
Common mistakes on basement and cellar conversions
- Setting a datum without allowing for DPC and screed thickness — regs check finished ceiling height, not slab height
- Trusting a full-height tripod reading in a room where joists sit under 2m, then wondering why the beam clips a truss
- Skipping the accuracy check because the room is small — a small basement magnifies a few millimetres of drift into a visible step at the far wall
- Setting drainage falls after the floor screed goes down instead of before, leaving the sump pump fighting the slope
- Marking single dots for a datum instead of a snapped chalk line, so plasterers and screeders work to their own reading
FAQ
What's the best rotary laser level for a basement conversion?
The Grettz G60 rotary laser level kit is the best fit for a basement conversion in 2026 because its beam stays readable indoors without natural light competing against it. It comes with a tripod, staff and receiver, which covers a full-room DPC and screed datum in one setup.
Do you need a laser receiver for basement work?
Most basement jobs don't need a receiver because a dark, windowless room makes the rotary beam directly visible by eye. A receiver still helps on longer open spans or where task lighting stays on throughout the job.
Is a green beam or red beam better for basement conversions?
Beam colour matters far less underground than outdoors. Green reads brighter in daylight, but in a dark basement a red beam from a rotary laser is just as readable, so range and tripod height matter more than colour.
Can a cross-line laser replace a rotary laser in a basement?
Only on the smallest jobs. A cross-line laser like the Grettz G2D covers stud and cabinet work in a single small room, but it can't sweep a continuous datum around a whole basement the way a rotary laser does.
How do you check laser level accuracy before starting a basement job?
Compare the beam height at 1m from the unit and again at 10m against the same fixed wall. A gap of more than a couple of millimetres means the laser needs recalibrating before you mark anything permanent.
How much headroom does a rotary laser level need in a low basement?
You need enough clearance for the tripod at its lowest setting plus a clear sightline to every wall. If ceiling joists sit lower than that, drop to a shorter pole-mounted setup instead of compressing the tripod past its rated range.
Is a digital spirit level enough for basement stud walls?
A digital spirit level like the Grettz GL120 is accurate enough for individual studs, joists and short runs, but it isn't a substitute for a room-wide datum line set by a rotary laser.
How often should a rotary laser level be calibrated?
Check it against a fixed reference before every job and book a full calibration, such as Grettz's Service 72, on a regular schedule rather than only after a job goes wrong. Drift that seems small outdoors shows up fast in a confined basement.
One last thing
Most tradespeople doing their first cellar job assume green beats red because it's easier to see. That's true outdoors or near a window — it disappears completely once you're underground with the lights down. In a windowless basement, a red beam from a rotary laser level reads just as clearly as green, so pick on range, receiver compatibility and tripod height for 2026 basement work, not beam colour.
