Digital spirit level for door hanging means a level with an electronic angle sensor that reads plumb and level in degrees or mm/m, instead of asking you to judge where a bubble sits inside two lines. Interior door hanging is a tighter job than a shed base or a fence run — you're checking a narrow frame, a hinge side, a head rail, and a floor that's rarely flat, all within a few millimetres of each other.
- Grettz GL120 1200mm digital spirit level reads frame plumb to the degree — the pick for full door frame checks in 2026.
- Grettz GL60 600mm suits tight leaf and hinge checks where a 1200mm level won't sit flush.
- Standard UK internal doors run 762mm or 826mm wide — check both edges of the opening, not just the centre.
- A analogue bubble level still tells you roughly plumb, but it won't quantify how far out the frame is.
Why digital spirit levels matter for door hangers
A door frame that's out by even a small margin shows up the moment the door is hung — it binds on the latch side, swings open on its own, or leaves an uneven gap top to bottom. Bubble levels are fine for a rough check, but they don't give you a number, so two tradesmen can look at the same bubble and disagree on whether it's acceptable.
A digital spirit level gives a readout in degrees, so you know exactly how far the frame is from true before you drive a single fixing screw. That matters more on interior door hanging than almost any other trade task, because the tolerances a joiner works to are tighter than groundworks or fencing, and the consequences of getting it wrong (a door that won't latch, a frame that's cracked pulling it straight) are more visible to the client.
Check the hinge-side jamb first
Start with the side that carries the weight. If the hinge jamb is out of plumb, everything you do after this point is compensating for an error, not fixing it.

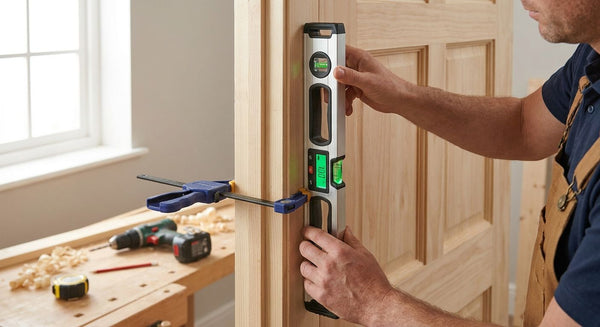

- Run the GL120 1200mm digital spirit level down the full height of the hinge jamb, not just the top third
- Read the digital display at the top, middle, and bottom of the frame — a jamb can be plumb at eye level and out at the floor
- Note the reading in degrees so you can compare before and after shimming
- Mark the high point in pencil so you know which way to pack packers when you fix the frame
Level the head of the frame side to side
Once the hinge jamb reads plumb, turn your attention to the head rail. A level head keeps the door swinging true across its full arc instead of drifting shut or open.
- Place the level flat across the head, resting on both jambs
- Compare the reading against the hinge jamb reading — they should agree, not just each look level on its own
- Shim under the low jamb leg before fixing, never after
- Recheck the head reading once the shims are in, since packing one side shifts the whole frame fractionally
Check the floor across the full width of the opening
Most interior floors aren't flat, especially in older properties where screeds have moved or floorboards have dropped over decades. Skipping this step is one of the most common reasons a door catches on the floor within months of being hung.
- Set the level flat on the floor at both jamb positions and at the centre of the opening
- Record the difference in reading between the two sides, since this tells you how much undercut the door leaf needs
- Check the reading again once any floor covering (carpet, laminate, tile) is accounted for
- Where the floor falls more than a few millimetres across the opening, plan the undercut before the door is trimmed, not after
Fit hinges square and shim as you go
This is where a faster tool earns its place. Once you've established plumb and level manually, a digital level speeds up every recheck that follows — you're not squinting at a bubble each time you add a shim, you're reading a number.
- Fit the top hinge first and check the jamb reading hasn't shifted
- Pack behind each hinge leaf evenly, checking the reading after every shim, not just at the end
- Use the digital display to confirm the middle hinge sits in the same plane as the top and bottom
- Keep a note of the readings at each hinge position so a callback later takes minutes, not a full recheck
Hang the door and check the swing
A door that's hung plumb but not checked in motion can still bind, because the frame and the leaf are two separate things.
- Check the leaf itself for plumb once it's hung, not just the frame before hanging
- Swing the door through its full arc and check it doesn't creep open or shut on its own
- Read the level at the top and bottom of the leaf edge, since a warped leaf shows a different reading top to bottom even in a perfect frame
- Recheck the latch-side gap once the door is closed, aiming for an even reveal top to bottom
Read the digital display correctly
Misreading a digital display causes more comebacks than a genuinely out-of-true frame. Get the habit right early.
- Confirm the level is sitting flush against the surface with no gap at either end before trusting the reading
- Wait for the reading to settle rather than reading it mid-movement
- Switch between degrees and mm/m modes depending on what the job calls for — degrees for plumb checks, mm/m for long runs
- Cross-check an unexpected reading against a second position on the same face before assuming the frame is wrong
For a full walkthrough on getting consistent readings, see how to use a digital spirit level.
Comparing your options for door hanging
| Option | Best for | Key limitation |
|---|---|---|
| Analogue bubble level | Quick site checks, no charging or batteries | No numeric readout — hard to spot small drift |
| Digital spirit level (GL120 / GL60) | Frame plumb and floor level with an exact degree reading | Needs an occasional accuracy check like any precision tool |
| Cross-line laser | Marking hinge lines and multiple points at once | Beam visibility drops in bright, sunlit rooms |
| Smartphone level app | Zero extra kit, always in your pocket | Phone case and screen flatness both affect the reading |
Verdict: the Grettz GL120 digital spirit level is the better buy for interior door hanging in 2026 because a 1200mm frame reads its full height in one pass, while the GL60 earns its place as the shorter tool for hinge-side and leaf checks where a longer level won't sit flush.
Common mistakes door hangers make
- Checking only the latch side and assuming the hinge side matches — the hinge side carries the load and should be checked first, always
- Levelling the head once and not rechecking after shimming the legs — packing one jamb shifts the head reading, so recheck it
- Trusting the floor is flat across the opening without a reading at both jambs — a standard 762mm or 826mm door opening can easily fall a few millimetres from one side to the other
- Reading the display once mid-fix instead of waiting for it to settle, which produces a false plumb reading and a door that binds later
- Using a level diagonally across a tall frame instead of running it flush down the full jamb height, which misses localised bow in the timber
FAQ
What's the best digital spirit level for hanging interior doors?
The Grettz GL120 1200mm digital spirit level is the best fit for interior door hanging in 2026 because it reads the full height of a standard frame in one pass. The Grettz GL60 600mm is the better choice for tight hinge-side and leaf checks where a longer level won't sit flush.
Is a digital spirit level more accurate than a laser for door hanging?
A digital spirit level gives a direct contact reading against the frame, which suits the tight, enclosed spaces around door jambs better than a projected laser line. A cross-line laser is more useful when you need to mark multiple hinge positions at once across a room.
How do I check if a door frame is plumb before hanging a door?
Run a digital spirit level down the full height of the hinge jamb and read the display at the top, middle, and bottom. A frame can look plumb at eye level and still be out lower down, so check all three points before fixing.
What size digital spirit level suits a standard UK door frame?
A 1200mm digital spirit level covers most standard UK door frame heights in a single reading, since internal doors are commonly 762mm or 826mm wide with frame heights around 1981mm to 2040mm. A 600mm level is better for hinge and leaf checks in tighter spots.
How much does a digital spirit level cost in 2026?
Pricing varies by length and features, so check the current listing on the Grettz Precision store for exact figures. Longer 1200mm models generally cost more than shorter 600mm versions due to the added sensor length and housing.
Can a digital spirit level replace a laser level on site?
For single-point plumb and level checks on a door frame, a digital spirit level does the job faster than setting up a laser. For marking multiple points across a room at once, a cross-line or rotary laser still has the edge.
How often should a digital spirit level be calibrated?
Check accuracy against a known flat surface any time the level has been dropped, knocked, or used heavily over a season. A quick on-site drift check takes under a minute and confirms whether a full calibration service is needed.
What's the difference between the GL120 and GL60 digital levels?
The GL120 is 1200mm long and suits full frame and jamb checks, while the GL60 is 600mm and fits into tighter hinge-side and leaf positions. Both give a digital readout rather than a bubble, so the choice comes down to the length the job needs.
One last thing
Most door hangers only check plumb on the face of the jamb, front to back — they skip the side check that catches a frame twisted along its length rather than just leaning. A frame can read dead plumb on the front face and still be twisted a couple of degrees along its depth, which shows up as a door that swings shut on its own even though every reading looked fine. Check both faces on the hinge jamb before you fix it, not just the one that's easiest to reach.
