Laser Level for Underfloor Heating: 2026 Buyer's Guide
Sep 04, 2026
Underfloor heating installers need a laser level that checks subfloor flatness before insulation boards go down, holds a level reference through the screed pour, and confirms the finished floor is flat enough for tile or LVT without cold spots. Wet and electric UFH systems don't forgive an out-of-level base the way a standard floor build-up might — a 10mm dip under a pipe run becomes a permanent cool patch once the screed cures over it.
- A cross-line laser level for underfloor heating installation, like the Grettz G4D, beats a spirit level across a full room.
- BS 8204 SR1 screed flatness sits within 3mm under a 2m straightedge — check before and after pour.
- Digital spirit levels such as the Grettz GL120 read exact millimetre falls at manifolds, thresholds and pipe clips.
- Rotary lasers earn their keep on open-plan UFH pours over 30m2; skip them for single small rooms.
- Recheck flatness after insulation boards settle and again before floor covering — most call-backs trace to skipped rechecks.
Why laser levels matter for underfloor heating installers
A spirit level tells you one point is level. A UFH subfloor needs every point across the room to sit on the same plane, because pipe or cable spacing, screed depth, and heat output all depend on it staying consistent. Heating engineers and screeders working to plumbers and heating engineers briefs in 2026 are increasingly checked against manufacturer warranty conditions that specify a flat, level base before loops go down — so the level check isn't optional paperwork, it's the thing that protects the warranty.
What makes this segment different from general flooring work: the check happens at three separate stages (subfloor, insulation board, post-screed), errors get buried under screed where they're expensive to fix later, and self-levelling compound only masks minor variation — it doesn't correct a genuine fall across a room.

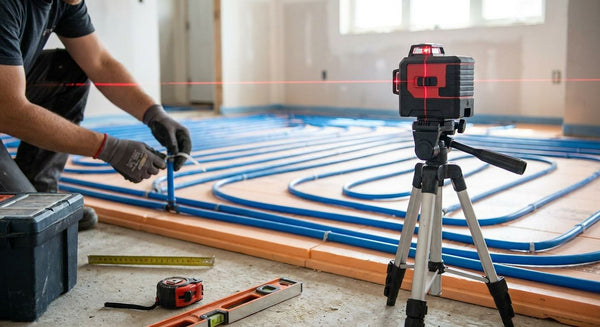

A cross-line laser level for underfloor heating installation earns its keep because it projects a level plane hands-free while you're fixing insulation boards or pipe clips — a spirit level can't do that without a second pair of hands and constant repositioning.
Check the subfloor before insulation boards go down
Start manual if you want: a 2m straightedge and a chalk line across a grid pattern will find the obvious high and low spots without spending a penny.
- Lay the straightedge on a 600mm–1m grid across the room and mark gaps with a feeler gauge or shim
- Check both diagonals, not just wall-to-wall, since twist doesn't show on a single line
- Flag any span over 3.6m for a second check — sag shows up over longer runs
- Log damp meter readings alongside level readings if it's a new-build slab
- Note doorway thresholds separately; UFH build-up often eats into door clearance
Set a laser reference line across the room
Once you've found the obvious problems, a cross-line laser removes the guesswork on everything else. The Grettz G4D Green Beam Multi-Line Laser Kit projects level and plumb lines simultaneously, so you can see the whole room's reference plane at once instead of moving a straightedge metre by metre.
- Set the laser at a height that clears furniture and door frames so the line stays visible
- Use the green beam version in daylight rooms — green reads clearer than red on site
- Mark the line at 1m intervals along each wall so board fitters have fixed reference points
- Check the unit hasn't drifted by rotating it 180 degrees and comparing the line position
- Re-shoot the line after moving the tripod more than 4-5m across a large room
Confirm insulation board and edge strip heights
Boards compress slightly and edge strips can lift if they're not bedded properly, so this step catches problems the laser line alone won't show at floor level.
- Measure down from the laser line to the board surface at each corner and centre point
- Check edge insulation strips sit flush, not proud, where they meet the wall
- Verify board joints haven't stepped — even 2-3mm at a joint telegraphs through the screed
- Confirm perimeter expansion gaps are consistent all the way round, not just at one wall
Check pipe or cable loop clearance before screed pour
This is where a digital spirit level does work a laser line can't — reading exact millimetre falls at fixed points like the manifold and clip rows. The Grettz GL120 1200mm Digital Spirit Level gives a numeric readout rather than a bubble you're eyeballing, which matters when the tolerance is a few millimetres.
- Check manifold height against the design drawing before pipes are clipped
- Read fall across clip rows at 2-3 points per run, not just at the start
- Confirm loop spacing hasn't drifted from the layout where pipes cross joints
- Check screed depth over the highest point of the pipe run meets the manufacturer's minimum
- Verify expansion joint positions line up with the loop layout before you commit to pour
Verify screed flatness before it cures
UK screed guidance under BS 8204 puts SR1-grade flatness within 3mm measured under a 2m straightedge — that's the working target for most UFH pours in 2026, and it's tighter than general flooring tolerance because uneven screed thickness over pipes changes heat output room to room.
On anything bigger than a single room, a rotary laser covers the ground faster than repeated straightedge checks. The Grettz G60 Red Beam Rotary Laser Level Kit self-levels and spins a 360-degree reference plane, so you can check multiple rooms or an open-plan pour against one fixed datum without resetting the instrument each time.
- Set the rotary laser at a height that clears the screed pump hose and site traffic
- Use the receiver to check level at the far corners of large open-plan pours
- Take readings while the screed is still workable so low spots can be topped up
- Recheck against the same datum the following day once the screed has firmed up
Check final flatness before floor covering goes down
Once the screed cures and the manifold is balanced, the floor covering choice affects how evenly that heat actually reaches the room. Thin, dense coverings transfer heat with less lag than deep pile carpet or thick underlay — the same reasoning behind choosing a low-pile rug for a wheelchair accessible home, where a low, dense pile keeps the surface flat underfoot and lets heat pass through rather than trapping it under a thick layer. Check the floor covering manufacturer's thermal resistance rating against your UFH design figures before anything goes down, not after the installer's already on site.
- Run a final 2m straightedge check at multiple points across the whole floor
- Check door threshold transitions match the design height, not just the room centre
- Confirm lippage between rooms sits within the tile or LVT manufacturer's stated limit
- Flag any area over tolerance before the flooring trade starts, not after
Which laser level suits underfloor heating work
| Tool | Best for | Key limitation |
|---|---|---|
| Manual straightedge and string line | Spot-checking a single small room with no power tools | Slow across large areas and dependent on operator technique |
| Digital spirit level (600-1200mm) | Exact millimetre readings at manifolds, thresholds and pipe clips | Single-point readings only, no room-wide reference line |
| Cross-line / multi-line green beam laser | Projecting a level plane across a room during board laying and screed | Beam visibility drops in strong daylight without a detector |
| Rotary laser level | Open-plan slabs or multi-room UFH pours in one pass | Needs a receiver and staff, more setup time for a single small room |
For most underfloor heating jobs in 2026, the Grettz G4D multi-line laser kit is the strongest general-purpose laser level for underfloor heating installation across single rooms through to whole-house retrofits — save the rotary laser for pours across more than one open-plan area at once.
“If the laser doesn't return to the same mark after a 180-degree spin, it's out of calibration — stop and check it before you commit to a screed pour.”
Common mistakes underfloor heating installers make with laser levels
- Trusting self-levelling screed to fix a bad subfloor. Self-levelling compound follows the existing profile within a few millimetres — it doesn't correct a genuine 10-15mm fall across a room.
- Checking level only at the manifold. The far corners of a loop run are where cold spots actually show up months later, not the point closest to the manifold.
- Not rechecking after insulation boards go down. Boards rock and settle once walked on; a line shot before boards were laid can be out by the time pipes go on top.
- Skipping the post-cure flatness check. Finding lippage after the tiler or LVT fitter is already on site turns a five-minute laser check into a day of remedial grinding.
- Ignoring threshold transitions when raising the floor build-up. UFH insulation and screed depth eats into door clearance fast, and it's rarely spotted until the door won't close.
FAQ
What's the best laser level for underfloor heating installation?
A cross-line or multi-line green beam laser, such as the Grettz G4D, is the best all-round choice for underfloor heating installation because it projects a level plane across the whole room during board laying and pipe fixing. Use a rotary laser instead for open-plan pours over roughly 30m2.
Do you need a laser level for underfloor heating or is a spirit level enough?
A digital spirit level is enough for single-point checks at a manifold or threshold, but it can't give you a room-wide reference the way a laser can. Most UFH jobs use both: a laser for the plane, a digital spirit level for exact local readings.
How flat does a subfloor need to be for underfloor heating?
UK screed guidance under BS 8204 SR1 puts the target within 3mm measured under a 2m straightedge. That tolerance is tighter than general flooring work because uneven screed depth over pipes changes heat output.
Can a green beam laser be seen indoors during the day for UFH work?
Yes, a green beam laser reads more clearly than a red beam in daylight rooms, which is why it's the common choice for indoor UFH checks. A detector isn't usually needed for line lasers used indoors.
Is a rotary laser overkill for a single-room UFH retrofit?
For one room, a cross-line laser or digital spirit level does the job faster with less setup. A rotary laser earns its cost on multi-room or open-plan pours where one datum needs to reach several spaces at once.
How do you check screed flatness before laying floor covering over UFH?
Run a 2m straightedge or laser line across the full floor at multiple points, including door thresholds, and compare any gaps against the flooring manufacturer's lippage limit. Flag high or low points before the flooring trade starts work.
What tolerance does UK screed guidance require for underfloor heating floors?
BS 8204 SR1 sets a flatness tolerance of 3mm under a 2m straightedge for screeds used with underfloor heating. This is checked both before and after the pour cures.
How often should a laser level be calibrated for site work?
Run a 180-degree rotation check before starting a job — project a line, mark it, spin the unit 180 degrees, and compare the mark. Any drift means the laser needs a proper calibration check before you rely on it for a screed pour.
One last thing
The cheapest insurance on a UFH job isn't a better laser — it's the 180-degree rotation check before you start. Project a line onto a wall, mark it, spin the laser 180 degrees, and check the mark lines up again; if it doesn't, the unit is drifting and every reading that day is suspect. It takes under a minute and it's the one step most call-backs trace back to skipping.
