Best Cross Line Laser Level for Wardrobes (2026 Guide)
Sep 03, 2026

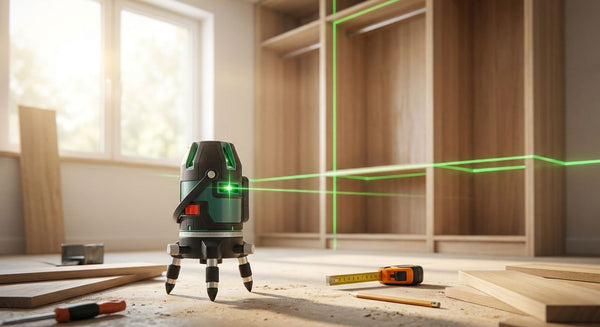

A cross line laser level for wardrobes projects a level horizontal line and a plumb vertical line onto a carcass in one setup, so wardrobe and fitted furniture installers can square gable ends and set a level top rail without a spirit level and a pencil mark for every panel. Fitted furniture work is different from site levelling: runs are short (2-6m), the room is usually lit by a window or overhead lights rather than open sky, and the walls behind the units are rarely as flat as they look. The laser needs to be bright enough to read against daylight and accurate enough that a 2.4m wardrobe run doesn't creep out of level by the time you fix the last panel.
- The Grettz G2D Mini Cross Line Laser suits single-wardrobe fits and runs under 3m in 2026.
- The Grettz G4D Multi-Line Laser projects four lines and holds a datum across longer, multi-unit runs.
- Green beam lasers stay readable in daylit bedrooms; red beam models often wash out near a window.
- A digital spirit level like the Grettz GL120 checks individual panels once the laser sets the room datum.
Why a cross line laser level for wardrobes matters
Most period and older UK properties have walls, floors and ceilings that are not square, level, or plumb to each other, and a fitted wardrobe carcass will show every one of those errors once doors are hung on it. Working off the existing skirting or floor line as your reference means you're squaring the furniture to a wall that's already out — a cross line laser level sidesteps that by giving you a fixed, independent datum for the whole run.
Fitted furniture also gets judged close up and at eye level, unlike a shed base or a driveway. A door gap that's 3mm wider at the top than the bottom is invisible on a rotary laser job outdoors and glaring on a wardrobe front in a bedroom. That's the gap a cross line laser is built to close.
How to set up a cross line laser level for a wardrobe fit
Check the room before you set the laser
Before switching anything on, work out where the actual reference points are. Skirting boards, door frames and existing coving lie to you more often than not.
- Run a straightedge or digital spirit level along the floor where the wardrobe base will sit
- Check the back wall for bow or hollow with a straightedge, not by eye
- Note where sockets, radiators or pipework will force a cut-out
- Mark the highest point on the floor — that's your working datum for base height
- Photograph the room before you start, so any dispute about "it was already like that" is settled
Set the laser at carcass height, not floor height
Mounting the unit too low means the projected line has to travel further up the wall, and any tiny angular error gets magnified over height. Set the cross line laser level roughly at the height of the top rail or the shelf line you're working to.
- Use a tripod or the G-GTP tripod and pole set rather than resting the unit on a stack of boxes
- Position the laser 1-1.5m back from the wall so the beam has settled before it hits the surface
- Let the self-levelling mechanism lock before reading the line — most units give an audible or visual signal
- Re-check the lock after moving the tripod between walls in the same room
Mark the level datum line across the wall
This line is what every carcass, shelf and worktop in the run gets measured from, so get it right once rather than checking it repeatedly.
- Pencil-mark the laser line at 300mm intervals along the wall so it survives if the beam gets interrupted
- Use the horizontal line to set the top of the carcass, not the bottom — gravity and floor packing handle the rest
- Cross-check one marked point with a spirit level before committing to cutting or fixing
- If the room has a bay window or alcove, mark the line on both return walls before assuming they match
Full step-by-step technique, including how to square corner units against the same line, is covered in this guide on using a cross line laser for cabinet installation.
Plumb the gable ends and corner posts
A level top rail with an out-of-plumb gable end still produces a door that binds at the top or bottom. The vertical line does this job — use it on every end panel, not just the first one.
- Hold the vertical line against the leading edge of each gable end before fixing
- Check plumb again after the unit is screwed to the wall, not just before
- For internal corner posts, project the vertical line onto both faces to confirm they meet square
- Pack behind the gable at floor level if the wall bows, rather than forcing the panel to follow the wall
Square multi-unit runs across one setup
When you're fitting three or four wardrobe units side by side, moving the laser between each one introduces small errors that stack up by the last unit.
- Set the laser once for the full run length wherever the room allows
- Use both the horizontal and vertical lines together to fix the position of each carcass relative to its neighbour
- Check the gap between adjacent units at top, middle and bottom before fixing the second unit
- Only reposition the laser if the run turns a corner or exceeds the laser's usable range indoors
Check doors and drawers before final fixing
This step catches problems while they're still cheap to fix — a carcass that's out by 2-3mm is a five-minute adjustment before fixing, and a full day's rework after.
- Hang one door on the worst-case unit (usually the end of the run) and check the reveal gap top and bottom
- Run a drawer in and out fully before fixing the unit to the wall
- Re-check the horizontal laser line hasn't drifted since the first mark — moving furniture around the room can knock a tripod
- Sign off the run visually from across the room, not just up close
Store and check the laser's accuracy after the job
A cross line laser level that's been dropped, left in a hot van, or knocked around in a tool bag can drift out of tolerance without any obvious sign. Checking it costs a few minutes; not checking it costs a re-fit.
- Run a quick 90-degree wall check: mark the horizontal line on one wall, rotate the laser 90°, and confirm the line lands on the same mark on the adjacent wall
- Store the unit in its case with the self-levelling lock engaged during transport
- Log the date of the last check if the laser is used daily across multiple jobs
- Send the unit for calibration if the drift check shows a gap of more than a couple of millimetres over 3-4m
Comparing options for wardrobe and fitted furniture work
| Option | Best for | Key limitation |
|---|---|---|
| Spirit level and pencil marks | Single shelf or small alcove unit | Slow on multi-unit runs; no independent datum |
| Grettz G2D Mini Cross Line Laser | Single wardrobes and runs under 3m | Shorter usable range than a multi-line unit |
| Grettz G4D Multi-Line Laser Level | Multi-unit runs, fitted furniture across a whole wall | Larger unit to carry between small rooms |
| Grettz GL120 1200mm Digital Spirit Level | Checking individual panels and top rails once the laser sets the datum | Doesn't project a line across a room on its own |
A cross line laser level for wardrobes is the right tool once you're fitting more than one carcass in a room; for a single alcove shelf, a spirit level still does the job in less time than setting up a tripod.
Common mistakes wardrobe fitters make with a laser level
- Setting the laser at floor height instead of carcass height, so the projected line has travelled further by the time it reaches the top of the unit and any small angular error is magnified.
- Trusting the existing wall or skirting as the reference rather than the laser line, which just squares the new furniture to an old, out-of-level wall.
- Skipping the self-levelling lock check before carrying the tripod between rooms — a knocked lock gives a line that looks level but isn't.
- Using a red beam laser in a daylit bedroom or landing and losing the line near a window, then guessing the last 300mm of the mark.
- Never running the 90-degree drift check, so a laser that's been dropped on a previous job quietly throws every measurement out on the next one.
FAQ
What is the best cross line laser level for wardrobes in 2026?
For single wardrobes and runs under 3m, the Grettz G2D Mini Cross Line Laser is the practical choice in 2026. For multi-unit runs across a full wall, the Grettz G4D Multi-Line Laser holds the datum over a longer distance.
Is a green beam or red beam laser better for indoor furniture fitting?
Green beam is easier to read in daylit rooms because the human eye is more sensitive to that wavelength than to red. Red beam lasers work fine in dim rooms or garages but wash out near windows.
Do I need a tripod to fit a wardrobe with a cross line laser?
A tripod or pole set holds the laser at carcass height and keeps it steady while you mark multiple points, which is faster and more consistent than resting the unit on a box.
How accurate does a laser level need to be for fitted furniture?
Fitted furniture is judged up close, so even a couple of millimetres of drift over a 2.4m run shows up as an uneven door gap. Run a quick accuracy check before starting any multi-unit job.
Can I use a rotary laser level for wardrobe fitting instead of a cross line unit?
A rotary laser can project a level line indoors but it's built for site-scale ranges and doesn't give you a plumb vertical line the way a cross line laser does, which fitted furniture work needs.
How do I check if my laser level has drifted out of calibration?
Mark the horizontal line on one wall, rotate the laser 90 degrees, and check the line lands on the same mark on the adjacent wall. A gap of more than a couple of millimetres over 3-4m means it needs checking.
What's the difference between a cross line laser and a digital spirit level for cabinets?
A cross line laser projects a reference line across a whole room in one setup; a digital spirit level like the Grettz GL120 checks an individual panel or top rail once that datum is set.
One last thing
The detail most fitters skip is checking the laser after transport, not before the job starts — a unit that's rattled around in a van boot for a few weeks can drift without giving any warning on the display. Run the 90-degree wall check at the start of every multi-day fit in 2026, not just when something looks off; by the time a door gap tells you the laser's out, you've already fixed three units to the wrong line.
