Best Laser Level for Groundworks and Civils

Groundworks is about as hard as it gets on kit. Dust, mud, rain, vibration from plant, and long open distances — a laser level that lives happily on a kitchen refit will not last a month on a civils job. If you're digging footings, laying drainage, reducing levels or setting out roads and slabs, you need a tool built for outdoor work. Here's what actually matters, and which setup we'd recommend.

Why groundworks needs a rotary laser

For outdoor levelling over distance, a rotary laser is the right tool. A rotary spins a single beam through 360°, creating a level plane across the whole site, and — critically — it works with a receiver, so you can pick the beam up in bright daylight at 100 metres or more. Line lasers are excellent indoors but the human eye simply cannot see a static line outside in sunlight at any useful range. If you're unsure of the difference, our guide to rotary vs line lasers covers it in detail.

The specs that matter on groundworks

• Self-levelling range and speed. On rough ground you'll never set a tripod perfectly. A decent self-levelling head takes care of the last few degrees and re-levels itself after a knock.
• Working range with a receiver. Think in terms of the whole job: drainage runs, kerb lines and slab pours regularly stretch beyond 50 m. A receiver-compatible rotary gives you hundreds of metres of usable diameter.
• Accuracy. Look at the ±mm per 30 m figure and understand how it compounds over distance — we've explained this fully in what ±mm/m really means.
• IP rating and build. IP54 or better keeps out dust and rain. A protective roll cage around the rotary head is worth having when the laser shares a site with excavators.
• Grade (slope) capability. This is the big one for civils. Drainage, car parks and access roads are designed to fall. A dual-grade rotary lets you dial a slope into the laser plane on one or both axes, so the receiver reads the designed fall directly.

Which Grettz rotary fits your work?

General groundworks and footings: the G60 red rotary laser kit covers level work — footings, formwork, datum transfer and reduced-dig checks — and comes as a complete kit with tripod, staff and receiver, so you're working the moment it arrives.

Drainage and falls: the G70 dual-grade red rotary adds slope on two axes. Set the designed gradient once and every reading down the trench is against the fall, not flat level — no more calculating offsets at every point. Our walkthrough on setting falls for drainage shows the method step by step.

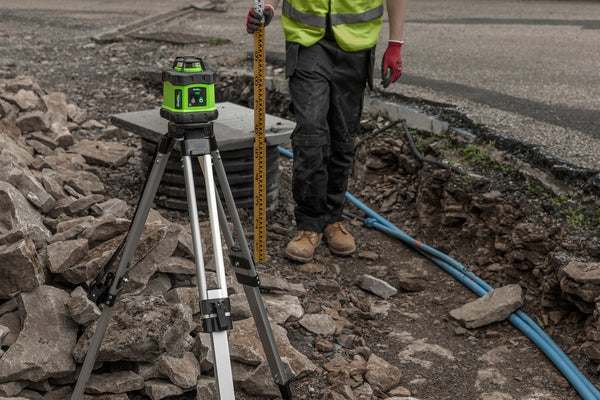

All-day civils work: the G80 green beam dual-slope rotary kit is the top pick. The green beam is noticeably easier to see in flat daylight for tasks close to the instrument, and you keep the dual-slope capability for grading work.

Don't forget the staff and tripod

A rotary is only as good as what it sits on and what you read it with. A stable tripod on firm, tamped ground and a clear, well-maintained 4 m levelling staff are the difference between confident readings and guesswork. Extend the staff from the top section down, check the joints are seated, and keep the face clean of mud.

Keep it reading true

Groundworks kit takes a beating, and a rotary that has drifted out of calibration will happily give you wrong levels all day without complaint. Get in the habit of a quick two-peg check before critical pours, and have the instrument professionally checked regularly — our Service 72 calibration programme turns your laser around within 72 hours so it's not sat in a workshop while the job stalls.

The bottom line

For groundworks and civils, buy a receiver-compatible rotary with a proper IP rating, and if your work involves falls — and most civils work does — make dual-grade capability the deciding factor. Browse the full Grettz rotary laser range, with every model backed by UK support and a 3-year warranty.
