Laser Levels for Extension Building: Which Type Do You Need?

An extension is not one laser-level job. Excavation and foundation levels, structural layout and interior fit-out create different measurement problems, so the best tool can change as the build progresses.

Groundworks and foundations

For transferring a datum around an outdoor site, a rotary laser with a receiver is the natural starting point. The G60 suits straightforward level transfer; grade-capable G70 or G80 models make sense where the work actually requires grade functions.

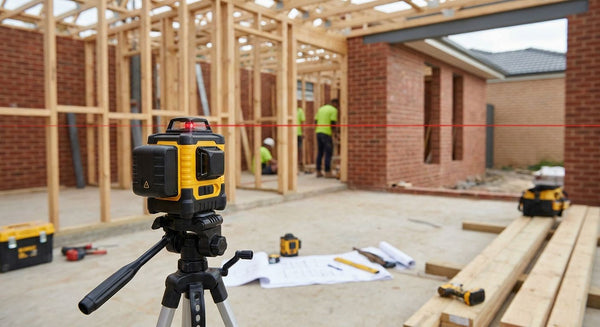

Walls, openings and first fix

As the building becomes enclosed, visible horizontal and vertical references become more useful. A cross-line laser can handle local layout; a multi-plane laser can reduce repositioning across several walls.

Interior fit-out

Kitchens, partitions, sockets, tiling and ceilings can benefit from 360° coverage. The G4D's four planes are useful when the job genuinely needs references around the room, including its lower horizontal plane 9mm from the floor.

Do you need one laser for everything?

Not necessarily. Trying to choose one instrument to cover every stage can mean compromising. A builder doing regular extensions may justify both rotary and line systems; an occasional project may not.

Don't forget physical measuring tools

Tapes, stringlines and spirit/digital levels still have clear roles. A laser projects a reference; it does not replace direct component checks or physical distance measurements.

The bottom line

Choose by stage: rotary and receiver for wider outdoor level transfer, line laser for visible building and fit-out references, contact level for the component itself.
