Rotary vs Line Laser: Which Do You Actually Need on Site?

“Rotary or line?” is the question we get more than any other. Both project a laser reference. Both self-level. Both can be tripod-mounted. So which do you actually need?

The short answer: rotary lasers project a continuous 360° plane that you read with a receiver outside, on long runs and over big distances. Line lasers project visible static lines (cross, square or 4D) that you read by eye, indoors and on shorter setups. They're different tools for different jobs, and most pro trades carry both.

Here's how to think about which one belongs in your van.

When a rotary laser wins

Reach for a rotary laser whenever you need a continuous level reference over a long distance, especially outdoors where ambient light makes a static beam hard to see. Typical jobs:

• Setting out slab levels for an extension, garage or warehouse
• Drainage runs, falls and gradients
• Marking out foundations and footings
• Grading driveways, patios and external paving
• Setting fence posts, decking levels and retaining walls

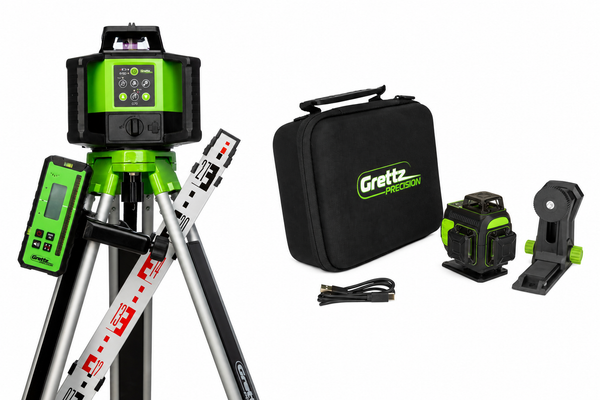

The G60 covers most general site work. Step up to the G70 for long-range red beam on larger plots, or the G80 dual-slope green beam when you need to set falls in two directions independently — for example, a complex paved area with multiple drainage points.

When a line laser wins

Reach for a line laser when you're working indoors or in a roofed area, you need a visible reference (not just a sensor reading), and the distances are shorter — typically under 30m. Typical jobs:

• Setting out tile courses, kitchen units, wall panelling
• Hanging stud work, partition tracks and ceiling grids
• Plumbing in door frames and skirtings
• Plastering — getting datum lines around a room in one setup
• Mounting shelving, TVs and bathroom fittings square

The G2D is a compact cross-line that's perfect for first-fix and finishing jobs. The G4D 4D goes further — full 360° horizontal and vertical lines simultaneously, which is a step-change for plasterers, tilers and dryliners who used to spend half their day moving a laser around.

What about green vs red beam?

Green beams (around 532nm) read brighter to the human eye than red (around 650nm) at the same power — roughly four times brighter, in fact. That's why most of our line lasers are green: you'll see them clearly in a well-lit room.

For rotary lasers used outdoors, red is often still the better choice because you're using a receiver anyway, and red diodes are tougher, cheaper to replace and run cooler. Green rotary lasers come into their own when you need partial visual reference indoors as well — exactly what the G80 is designed for.

The pro setup

Most full-time trades end up with one of each: a rotary kit for setting out and a line laser for the day-to-day. If you're starting out and can only buy one, ask yourself: are you outdoors or indoors more often? That'll usually decide it.

Browse the full range across rotary lasers and line lasers, or get in touch via our contact page if you'd like a personal recommendation.
