Laser Levels for Driveways and Patios: Level, Fall and Setting Out

A driveway or patio normally needs more than “level”. It may need a designed fall, consistent heights and straight physical edges — three different setting-out problems.

Establish the datum

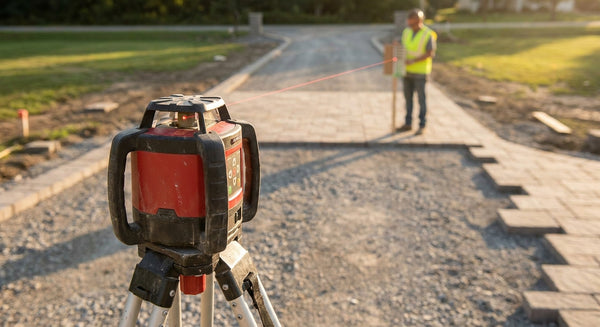

A rotary laser with a receiver is useful for transferring a reference around an outdoor working area without relying on seeing the beam in daylight.

Simple level work

For straightforward height transfer, the Grettz G60 is the starting point in the rotary range. Used with its receiver it offers a stated working range up to 400m.

When grade capability helps

If the project requires a controlled fall, a grade-capable rotary such as the G70 or G80 can make that reference easier to establish. The required fall should come from the design or specification, not from a generic rule in a laser guide.

What about the G4D?

A multi-line laser can be useful for shorter, sheltered layout work, edging and adjoining structures. For open driveway levelling in bright conditions, a receiver-based rotary is generally the more suitable system.

Keep the stringline

A laser provides a height reference; stringline provides a physical straight edge. Use each where it is strongest.

The bottom line

Separate datum, fall and alignment. Once you know which of those you are setting, choosing the measuring tool becomes much easier.

Read next

See Line Laser vs Rotary Laser, then compare G60, G70 and G80 if the job needs receiver-based outdoor levelling.
