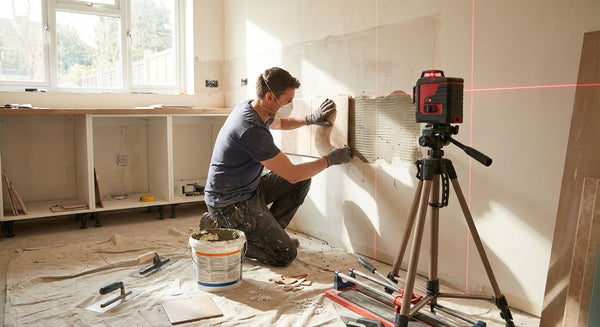

How to Use a Laser Level for Tiling Walls (2026 Guide)
Aug 20, 2026
Straight tile rows and plumb joints start before the trowel touches the wall — they start with a laser level giving you a fixed, dead-accurate reference. This guide covers exactly how to set up and use a laser level for tiling walls, step by step, so every row sits true from skirting to ceiling.
- A cross-line laser level such as the Grettz G2D sets your horizontal and vertical tiling reference before the first tile goes on — set it up first, every job.
- Mount the laser 1.2-1.5m up the wall, check the beam against a digital spirit level, then work outward from that line.
- Grout joints hold at 2-3mm; if the laser line drifts more than 1mm over a metre, stop and recheck the tripod before tiling.
- On walls over 3m or in rooms with more than one wall to tile, a multi-line laser like the Grettz G4D projects level and plumb simultaneously and saves repositioning.
Why this matters
Walls lie. Skirting boards are rarely level, corners are rarely square, and a floor that looks flat can be 8-10mm out over a run of tiles. Working off any single fixed point — the floor, the ceiling, an old grout line — bakes that error into every row you lay.
A laser level removes the guesswork. It gives you one true horizontal and one true vertical, independent of anything else in the room, and every measurement you take afterwards references back to that line instead of to a wall that's already lying to you.
What you'll need
- A cross-line laser level — the Grettz G2D Mini Cross Line Laser handles a single bathroom or splashback wall on its own
- A tripod, or a wall/pole mount if you're working tight to a corner
- A digital spirit level for cross-checking short runs
- A tape measure and pencil
- Low-tack masking tape for marking the wall without lifting paint
- Tile spacers matched to your grout width (2-3mm is standard for wall tiles)
- A notched trowel, tiles, and adhesive
- Laser glasses if you're working in a bright bathroom with a red-beam unit
If the wall is over 3-4m long or you're tiling two adjoining walls in one go, a multi-line unit saves you moving the tripod every hour — more on that in the steps below.
The steps
1. Set the tripod on solid ground
Soft flooring, loose tile spacers, or an unlevel tripod leg is the single most common cause of a laser line that looks fine at setup and drifts by the time you've tiled 2m of wall. Extend all three legs fully, plant them on solid subfloor or tile, and let the self-levelling mechanism settle for 10-15 seconds before you trust the beam.
Expected outcome: the laser locks and the line sits still. If it's still hunting after 20 seconds, the tripod isn't level enough — adjust it, don't fight the laser.
2. Set your horizontal reference line
Position the laser so the horizontal line sits roughly one tile height up from where your bottom row will start — usually 1.2-1.5m up the wall for a standard bathroom job. This becomes your master line: every row above and below it gets measured against this, never against the floor.
Mark the line at three points along the wall with a pencil dot, then join the dots with a straightedge if you want a hard pencil line as backup once the laser's off.
3. Set your vertical plumb line
Switch the laser to project its vertical beam down the centre of the wall, or at your first tile joint if you're centring the layout. This line tells you whether your grout joints will run true from floor to ceiling — a wall that looks square by eye is very often 5-10mm out of plumb over 2m.
Common mistake: setting the vertical line off a door frame or window reveal. Neither is guaranteed square. Set it off the laser, always.
4. Mark your setting-out lines
Run masking tape along both the horizontal and vertical laser lines so you have a visible, tape-backed guide once you start mixing adhesive and the laser dot gets harder to see against a wet trowel line. This is your dry-run check before anything gets fixed permanently.
Step back and check the tape lines against the room's fixed points — door frames, window sills, sockets — so you catch any layout clash now, not after six tiles are up.
5. Cross-check with a digital spirit level
Before you fix the first tile, run a digital spirit level along the laser's horizontal line for 600-1200mm at a time. A unit like the Grettz GL120 1200mm Digital Spirit Level gives you a numeric readout, so you're not eyeballing a bubble against a laser dot in a dim bathroom.
This step catches the rare case where a laser has drifted out of calibration — if the digital level disagrees with the laser line by more than 1-2mm over a metre, trust the digital level and recheck the laser before you commit adhesive to the wall.
6. Fix your first row from the laser line
Spread adhesive along your marked line, not from the floor up. Set the first row so its top edge sits exactly on the laser's horizontal line, use spacers for consistent grout gaps, and check each tile against the line as you go rather than trusting the tile next to it.
Expected outcome: a first row that's dead level across the whole wall, even if the floor beneath it isn't.
7. Recheck every third row
Adhesive shifts slightly as it beds in, and tripods can creep on a busy site. Glance at the laser line against your last-fixed row every third course — it takes ten seconds and it's the cheapest insurance against having to pull tiles back off the wall.
8. Switch to multi-line mode for corners and second walls
If the job runs onto a second wall — a shower enclosure, an internal corner — a single cross-line laser means resetting the tripod and re-establishing plumb from scratch. A multi-line unit such as the Grettz G4D Green Beam Multi-Line Laser Level projects level and plumb across two or more walls from one setup, so your reference stays consistent right through the corner joint.
For a deeper look at getting the most out of cross-line units specifically, the Grettz guide on using a cross-line laser level covers beam modes and indoor range in more detail than fits here.
Troubleshooting
Laser line hard to see in a bright bathroom. Red beams wash out under strip lighting or daylight through a window. Switch to a green-beam unit or put on laser glasses — green is roughly four times more visible to the human eye at the same output.
Line looks level but tiles are visibly drifting by row six. The tripod has likely crept on a tiled or laminate floor. Re-level the tripod, weight the legs if the floor is slick, and recheck against the digital spirit level before continuing.
Floor looks uneven compared to the laser line. That's expected — floors are rarely flat. Ignore the floor entirely once the laser's set; your first row references the laser line, not the skirting.
Vertical line doesn't match a plumb bob or the door frame. Trust the laser, not the frame. Door and window reveals are frequently out of square by several millimetres and are not a reliable check.
Multiple beams overlapping at a corner make it hard to read the line. Switch to single-line mode on the wall you're actively working, or reposition the tripod further from the corner so the beams separate more clearly.
Tools and resources
- Cross-line or multi-line laser level, matched to the size of the job
- Digital spirit level for short-run cross-checks
- A steel tape measure for room dimensions and tile counts
- Masking tape and pencil for marking laser lines permanently on the wall
- Tile spacers sized to your grout gap
If you're tiling a floor as well as walls in the same room, the setup differs slightly — check the guide on using a laser level for tiling floors and walls before you start the floor section, since floor lasers reference a datum line rather than a wall-height horizontal.
What to do next
Once the walls are up and grouted, the same laser setup carries over to hanging fixtures, mirrors, and shelving on the same wall — you've already got a true reference line marked, so use it rather than starting fresh with a spirit level.
FAQ
How do you use a laser level for tiling a wall?
Set the laser on a levelled tripod, project a horizontal line roughly 1.2-1.5m up the wall, and a vertical plumb line down the centre or first joint. Tile your first row to the horizontal line rather than the floor, and recheck every third row.
What height should the laser line be for wall tiling?
Most tradespeople set the horizontal reference one tile height up from the intended bottom row, typically 1.2-1.5m from the floor. That keeps the line visible at working height and away from splashback grime.
Is a cross-line laser enough for tiling, or do I need a rotary laser?
A cross-line laser like the Grettz G2D is enough for a single wall or small bathroom job. A rotary laser is built for outdoor and large-area levelling, not indoor wall tiling, so it's the wrong tool for this task.
How accurate does a laser level need to be for tiling?
Grout joints on wall tiles run 2-3mm, so a laser drifting more than 1mm per metre will show as a visibly uneven joint by the third or fourth tile. Cross-check with a digital spirit level if you're not sure the laser is holding calibration.
Can I use a laser level and a spirit level together?
Yes, and it's the safer method. Use the laser for the long reference line across the wall and a digital spirit level to confirm short runs of 600-1200mm as you tile, catching any drift before it's baked into several rows.
Why does my laser line look level but the tiles still look crooked?
The tripod has usually shifted, or the first row wasn't fixed exactly to the laser line rather than to the floor or an adjacent tile. Re-level the tripod and check the fixed row against the laser again before continuing upward.
Do I need a green beam or red beam laser for indoor tiling?
Either works indoors, but green beams are easier to see under bathroom lighting, which matters when you're marking fine grout-line tolerances. Red beam units are usually cheaper and fine in a well-lit room.
One last thing
Most wall-tiling laser mistakes trace back to one habit, not one tool: fixing the first row to the floor instead of the laser line. Floors move, settle, and were rarely flat to begin with — the laser line is the only fixed truth in the room, and treating it that way from tile one is what keeps the whole wall square by the time you're grouting the top row in 2026's tighter finish standards on new-build bathrooms.
