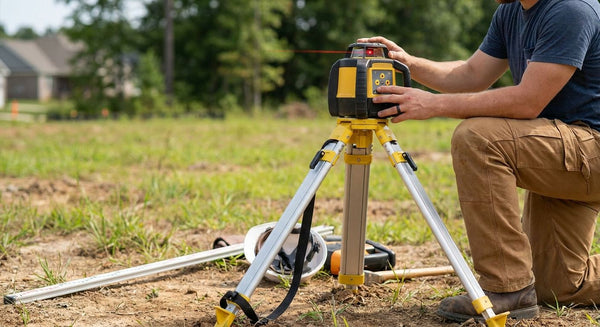

How to Set Up a Rotary Laser Level Outdoors (2026)
Aug 20, 2026
Setting up a rotary laser level outdoors comes down to three things: a stable tripod, a beam path clear of obstructions, and a receiver sensitivity dialled to the site conditions — get any one wrong and you'll spend an hour chasing a fault that was never in the laser.
- Tripod stability matters more than laser spec — a wobbling leg beats any accuracy rating on the box.
- Grettz G60 rotary laser level kit covers a 600m working diameter with the LR1 receiver, enough for most groundworks and foundation jobs in 2026.
- Green beam rotary lasers read further in bright daylight than red beam kits — worth the upgrade on open sites with no shade.
- Recalibrate every 3-6 months or after any knock — drift under 3mm over 10m is within spec, anything more and the job's compromised.
- Wind vibration on the tripod causes more outdoor errors than beam range ever does.
Why this matters
Outdoor setup is where most rotary laser errors actually happen — not in the unit itself. Sunlight washes out red beams past 30-40m, soft ground lets tripod legs sink mid-job, and wind vibration throws off self-levelling sensors that work fine on a workshop floor. None of that shows up as a fault code. It just shows up as a dig level that's 8mm out by the time you've set four corners.
Getting the setup routine right once means you stop second-guessing the numbers on every job after.
What you'll need
- A rotary laser level rated for outdoor range — the Grettz G60 rotary laser level kit covers a 600m diameter with its LR1 receiver, which suits most groundworks and foundation work.
- A tripod rated for the ground you're working on — extendable legs for uneven or sloped sites.
- A telescopic staff, marked and readable at distance.
- A detector/receiver matched to the laser's beam class.
- A 50m steel surveyors tape measure for checking distances and datum offsets.
- 15-20 minutes for setup and a level check before you start taking readings.
On a groundworks or foundation job in 2026, budget an extra 5 minutes for a drift check if the kit has travelled in a van boot — vibration during transport is the single biggest cause of outdoor readings going wrong on day one.
The steps
1. Set the tripod on firm ground
Spread the legs wide and push each foot in until it stops moving under hand pressure. On soft or freshly dug ground, this is the step people rush and the step that ruins the job. A tripod that settles 4mm after you've taken your first reading means every reading after it is wrong by the same amount.
Common mistake: planting all three legs at the same depth on sloped ground instead of adjusting leg length to keep the head roughly level before the laser even starts self-levelling.
2. Mount and power the laser
Seat the rotary unit on the tripod head and lock it down properly — a half-turned mount is the most common reason a laser reads fine for ten minutes then drifts. Power on and let the self-levelling motors settle before touching anything else.
Most rotary lasers give an audible or visual signal once level. If yours flashes an out-of-range warning, the tripod head isn't close enough to level to begin with — go back to step 1.
3. Confirm the level before you rely on it
Don't take the self-level indicator on faith for a job that matters. Take a reading on the staff at two points roughly 10m apart and compare. On a rotary laser in good calibration, that difference should sit within a few millimetres — anything wider and the instrument needs checking before you set anything out.
This is the point where a lot of tradespeople skip a step they shouldn't. A 60-second check here saves a re-dig later.
4. Position the receiver on the staff
Slide the receiver up and down the staff until it locks onto the beam — most units give a solid tone or steady light when centred. Read the offset directly off the staff graduations rather than eyeballing the receiver window.
Common mistake: holding the staff at an angle instead of dead vertical. Even 2-3 degrees of lean throws the reading off more than most people expect at range.
5. Set your benchmark or datum
Pick a fixed, undisturbed reference point — a manhole cover, existing slab, or a peg driven well below disturbance depth — and take your first reading there. Every other reading on site gets measured relative to this one point, so get it right before moving anywhere else.
Write the datum reading down immediately. Memory is not a record on a site where three trades are reading off the same laser.
6. Take readings around the site
Work the perimeter and any internal points systematically, staff vertical, receiver centred, reading logged before you move. On a foundation or groundworks job, take corner readings first, then infill points — corners define the whole job, infill just confirms it.
7. Account for wind and vibration
On open outdoor sites, wind loading on the tripod and staff is the most underrated source of error. A gusty day can shift a tripod head by a millimetre or two between readings without anyone noticing. Weight the tripod legs if you're on hard standing, and take repeat readings on exposed days rather than trusting a single pass.
8. Pack down and check for damage
Power down before removing the laser from the tripod head, and check the mounting thread and receiver clip for grit or damage before the next job. A knocked unit that isn't checked is how drift creeps in over a season without anyone catching it.
Troubleshooting
Receiver won't lock onto the beam. Check the receiver's sensitivity setting first — bright sun washes out a beam the receiver would otherwise catch easily in shade. Move the receiver slowly rather than sweeping fast; the lock window is narrower outdoors than in a workshop test.
Laser won't finish self-levelling. The tripod head is out of range for the internal compensator, usually more than 5-8 degrees off level. Reset the tripod legs and try again before assuming the unit has a fault.
Readings drift across the site. This is almost always tripod settlement on soft ground, not the laser going out of calibration mid-job. If drift persists after re-planting the tripod, run the 60-second check outlined in how to calibrate a rotary laser level for accurate results before trusting the unit on a critical pour.
Beam too dim in direct sun. A red beam rotary laser struggles past 30-40m in full daylight. A green beam unit like the Grettz G80 reads noticeably further under the same conditions — worth the upgrade if most of your work is on open, unshaded sites.
Tripod sinking mid-job. Swap flat feet for spiked feet on soft or wet ground, or lay a paving slab under each leg on freshly turned earth.
Cross-wind vibration on tall staffs. Shorten the staff extension where the job allows, or take two readings a few seconds apart and average them on gusty days.
Tools and resources
- Grettz G60 rotary laser level kit — tripod, staff and LR1 receiver in one kit.
- Grettz G80 green beam dual slope rotary laser — for open sites where daylight visibility is the limiting factor.
- 50m steel surveyors tape measure — for checking distances and confirming datum offsets.
- How to calibrate a rotary laser level for accurate results — the drift check to run before any job that can't afford to be wrong.
What to do next
Once the setup routine is solid, the next job is usually translating those readings into actual dig levels and corner pegs. Rotary laser level for foundations covers FFL datums, corner readings and the mistakes that turn a good setup into a bad dig.
FAQ
How do you set up a rotary laser level outdoors?
Plant a tripod on firm ground, mount and power the laser, let it self-level, then confirm the level with a two-point staff check before taking any readings. Skipping the confirmation check is the most common reason outdoor readings go wrong.
What's the working range of a rotary laser level outdoors?
A red beam kit like the Grettz G60 covers a 600m working diameter with its LR1 receiver, though bright direct sun can shrink usable range without a receiver. Green beam units read further in daylight than red beam equivalents.
Is a green beam or red beam rotary laser better outdoors?
Green beam rotary lasers are more visible in direct sunlight than red beam units, which matters most on open sites without shade. Red beam kits still work well outdoors when paired with a receiver, since you're reading the beam electronically rather than by eye.
How often should you calibrate a rotary laser level?
Check calibration every 3-6 months or immediately after any drop or knock during transport. A drift of more than 3mm over a 10m check indicates the unit needs recalibrating before it goes back on site.
Why does my rotary laser level drift outdoors but not indoors?
Outdoor drift is usually tripod settlement on soft ground or wind vibration, not the laser itself losing calibration. Firming up the tripod feet and taking repeat readings on windy days resolves most of these cases.
Can wind affect a rotary laser level reading?
Yes, wind loading on the tripod and staff can shift readings by a millimetre or two between passes on gusty days. Weighting the tripod legs and averaging two readings a few seconds apart reduces the error.
What tripod is best for outdoor laser level setup?
An extendable-leg tripod with spiked feet handles uneven and soft ground better than a flat-footed tripod built for indoor floors. Firm foot placement matters more than tripod height for outdoor accuracy.
Do you need a receiver for a rotary laser level outdoors?
Yes, outdoors a receiver is standard practice since direct sunlight washes out a visible beam past 30-40m. The Grettz G60 kit includes an LR1 receiver for this reason.
One last thing
The detail most people skip is the two-point staff check in step 3 — it takes under a minute and catches tripod settlement before it costs you a re-dig. On a foundation job in 2026 where the margin for error is a few millimetres, that one check is cheaper than any laser upgrade.
