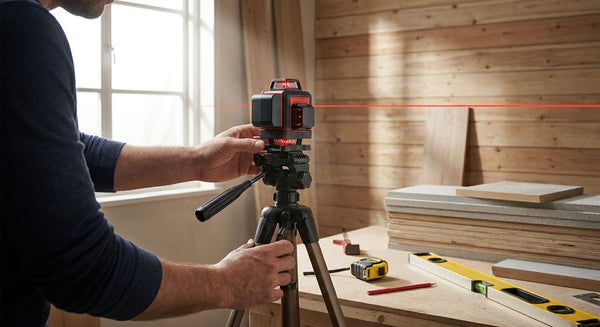

How to Set Up a Self-Levelling Laser Correctly

A self-levelling laser removes the need to manually level the projected reference within its designed operating range. It does not remove the need for a stable setup or a sensible accuracy check.

1. Start with a stable mounting point

Use a tripod, pole, bracket or firm surface appropriate to the job. Check that clamps, threads and joints are secure.

2. Position the laser near the height you need

Self-levelling corrects a limited amount of tilt; it does not move the instrument to the right working height. Set the support approximately where the reference needs to be first.

3. Unlock the levelling mechanism

Follow the instructions for the model. On pendulum-based line lasers, the transport lock normally needs to be released for self-levelling operation.

4. Let it settle

Give the mechanism time to stabilise. If the laser shows an out-of-level warning, flashing line or other warning state described in its manual, adjust the support until the instrument is within its operating range.

5. Establish the datum

A level line is only useful when it is at the correct position. Use drawings, measurements or a known site datum to place the projected reference where the job requires it.

6. Protect the setup

Once work starts, avoid kicking the tripod or loading the mounting pole. If the support is disturbed, recheck the reference before continuing.

7. Lock it for transport

Where the model uses a pendulum transport lock, engage it before moving or storing the laser as instructed by the manufacturer.

The bottom line

Self-levelling means the instrument can establish its own level plane within its operating range. It does not mean every setup is automatically correct.
