How to Set Up a Laser for Suspended Ceilings
Aug 24, 2026
A suspended ceiling needs a consistent reference around the room. A laser can make that reference visible without repeatedly transferring marks from one wall to the next.
1. Establish the ceiling datum
Determine the required ceiling height from the drawings and site information. The laser carries that datum; it does not decide it.

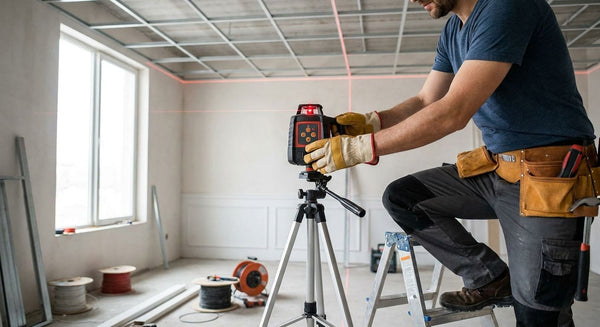

2. Mount the laser securely
Use a tripod, pole or bracket that keeps the instrument stable and positions the horizontal plane where it is useful. Protect the setup from site traffic.
3. Let the laser self-level
Follow the model instructions and confirm it is within its self-levelling range before marking or setting perimeter trim.
4. Transfer the horizontal reference
Use the line around the room as the common height reference. Check the actual installed components as work progresses rather than assuming every fixing follows the beam perfectly.
5. Use vertical planes for layout where helpful
On multi-plane lasers, vertical references can assist with grid alignment and other coordinated layout. A four-plane laser can reduce repositioning, but a smaller system may be enough for a straightforward room.
6. Recheck if the setup is disturbed
If the laser or mount is moved, establish the reference again from known marks before continuing.
The bottom line
The laser's job is to make a consistent datum and layout reference easy to see. The ceiling design, hanger requirements and installation tolerances still come from the specified system.
