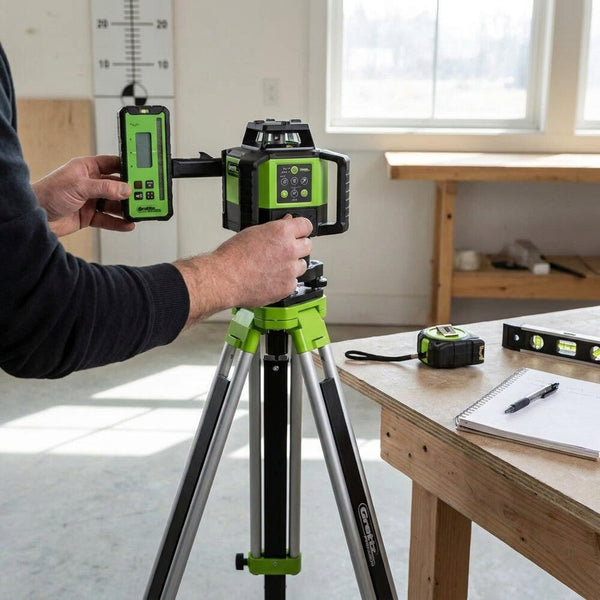

Laser Calibration Guide 2026: Rotary Laser Drift Test
Aug 14, 2026
A rotary laser level that's drifted out of calibration still spins, still beeps, and still looks level on site - it just isn't. This guide runs through the two-point drift test tradespeople use to catch that before it costs a foundation pour, what tolerance to accept, and when to stop adjusting and book a proper service in 2026.
- Laser calibration on a rotary laser takes under 15 minutes with a 30m test line and a tape measure.
- Drift over 3mm across 30 metres means the unit fails and needs adjustment or servicing.
- The Grettz G60 rotary laser and G80 dual slope kit both use the same two-point drift test.
- A compensator that doesn't settle within 2-3 seconds of a tap is the most common fault on site.
- Run laser calibration every 6-12 months, or straight after any drop, before setting out in 2026.
Why this matters
A rotary laser doesn't fail loudly. It fails by a few millimetres at a time, and those millimetres compound across a slab, a run of drainage falls, or a line of foundation pegs. Nobody notices until the concrete's down or the block course is out of true.
Laser calibration isn't a workshop-only job. A proper drift check on site takes about 15 minutes and tells you whether the unit you're about to trust for the day's setting-out is actually accurate, or whether it needs adjustment before you commit to anything permanent in 2026.
What you'll need
- A flat, open run of ground at least 30m long - tarmac or level concrete is ideal
- Your rotary laser and its receiver, e.g. a Grettz G60 rotary laser kit
- A tripod, set on firm ground with the legs spread wide for stability
- A staff or two, marked in mm graduations
- A 50m steel tape measure to fix your test points precisely
- A pencil or marker pen and something to log readings on
- 15-20 minutes of uninterrupted time - windy days push the beam and skew results
The steps
1. Mark two test points 30m apart
Peg or chalk two points, A and B, exactly 30m apart on flat ground. The longer the line, the more any error shows up - anything under 20m makes small drift look like nothing when it isn't.
Common mistake: testing over a slope or a kerb. Any change in ground level between A and B contaminates the reading and you'll chase a fault that isn't there.
2. Set up midway and take two readings
Position the tripod and laser exactly halfway between A and B - roughly 15m from each. Level it, let the compensator settle, then take a receiver reading at A and a reading at B. Log both and calculate the difference. On a correctly calibrated unit, that difference should be close to zero.
3. Move the laser to one end
Relocate the tripod to within 1-2m of point A. Level again, wait for the beam to settle, then take fresh readings at both A and B. This second set of readings, taken from an offset position, is what exposes any error the midpoint position hides.
4. Calculate the actual drift
Subtract the difference recorded at the midpoint (step 2) from the difference recorded at the offset position (step 3). The result is your true error over 30m. Double it if you want the figure per 60m, or scale it down for a shorter working radius.
Why this matters for laser calibration: the midpoint test alone can look fine even on a faulty unit, because errors partially cancel out when the laser sits equidistant from both points. Moving to one end is what forces the fault to show.
5. Check the result against tolerance
Anything under 3mm over the 30m line is within normal working tolerance for site use. Anything above that, and you're looking at a unit that's drifted and needs adjustment before it goes anywhere near a foundation, a slab, or a run of falls.
“If your drift is over 3mm at 30 metres, don't trust the laser on a foundation pour.”
6. Test the self-level compensator separately
With the laser running and levelled, tap the housing gently on one side. The beam should dip, then recover to level within 2-3 seconds. If it doesn't recover, or recovers to a different position than it started, the compensator itself is failing - no amount of manual adjustment fixes that.
7. Repeat on a dual-slope or dual-grade unit
Dual-slope rotary lasers like the Grettz G80 dual slope rotary laser kit need the same two-point test run in both standard rotary mode and in slope mode, since the grade axis has its own calibration that a flat-mode test won't catch. Skipping this step is the most common reason a dual-grade unit passes a basic check and still throws out drainage falls.
Troubleshooting
- Drift increases the further out you test. Points to a misaligned internal mirror or damaged levelling vial - this is a servicing job, not a field fix.
- Beam won't self-level or flashes on/off. The compensator has hit its travel limit because the unit isn't on stable ground, or the compensator mechanism itself has failed after a knock.
- Receiver beeps inconsistently at the same height. Usually a flat or failing battery in the receiver rather than the laser - swap it before you assume the laser's at fault.
- Beam faint or hard to see in daylight. Green beam units like the G80 are roughly four times more visible than red beam in bright conditions - if you're working outdoors most days, that visibility gap matters more than the price difference.
- Readings differ every time you re-level in the same spot. Check the tripod itself - loose leg clamps or a worn tripod head introduce their own error before the laser even gets a chance to.
- Cross-check disagrees with the laser. Confirm with a 1200mm digital spirit level on a known flat surface before you condemn the rotary unit - sometimes the reference is the problem, not the laser.
Tools and resources
- Flat 30m+ test line, marked and measured with a steel tape
- Tripod, staff, and receiver matched to your unit
- A digital spirit level for independent cross-checks on shorter runs
- A stringline for transferring levels once the laser's confirmed accurate
- A logbook - date, drift reading, and pass/fail, kept against each unit so you're not guessing next time
What to do next
If your unit fails the drift test, don't attempt to strip the housing and adjust the mirrors yourself - that's how a marginal fault becomes an unusable laser. Grettz runs in-house Service 72 calibration covering the full drift and compensator check plus adjustment, and it's the same process described here run to a traceable standard rather than a site guess. Book it as soon as a unit fails tolerance rather than waiting for the next job to expose it.
FAQ
How often should I run laser calibration on a rotary laser?
Run a drift check every 6-12 months for normal site use in 2026, and immediately after any drop, knock, or transport in an unpadded case. Units used daily on foundation or drainage work benefit from checking every 3 months.
What's an acceptable drift result for a rotary laser?
Under 3mm of drift over a 30m test line is normal working tolerance. Anything above that on the two-point test means the unit needs adjustment or a full service before it's trusted on setting-out work again.
Can I calibrate a rotary laser myself?
You can run the drift and compensator test yourself with a tripod, staff and tape measure - that's a field check, not an adjustment. Actual internal recalibration needs the housing opened and should go to a proper service, not a site fix.
Is a green beam rotary laser more accurate than red beam?
Beam colour affects visibility, not accuracy - green beams like the Grettz G80 show up roughly four times brighter to the eye in daylight, but the internal compensator and drift tolerance are what determine calibration, not the colour.
How much does it cost to calibrate a rotary laser?
A basic on-site drift check costs nothing beyond your time and a tape measure. A full in-house service and adjustment, such as Grettz Service 72, is a separate paid job - check current pricing directly before booking.
Why does my rotary laser pass the midpoint test but fail at one end?
The midpoint position can mask an error because it sits equidistant from both test points, letting the fault partially cancel out. Moving the laser to one end of the line and re-testing is what exposes the true drift.
Does a dual-slope rotary laser need extra calibration checks?
Yes - dual-slope units need the standard two-point test run again in slope mode, since the grade axis calibrates separately from flat mode. Skipping that step is the most common reason drainage falls come out wrong.
What happens if I use an out-of-calibration laser on a foundation?
Even a few millimetres of drift compounds across a slab or a run of pegs, and it won't show until the concrete is down or the blockwork is out of true. That's why the drift test matters before setting out, not after.
One last thing
The cheapest calibration check most sites skip isn't the 30m drift test - it's the tap test on the compensator. A unit that recovers slowly, or drifts to a different level after a knock, will pass a static drift check on a good day and still fail on a windy one. Run both, every time, not just when something looks off.
