Rotary Laser Level for Sports Pitch Construction 2026
Sep 02, 2026
Building a sports pitch to a fall, not a flat plane, is the single biggest difference between this job and a driveway or a slab. Get the wrong laser or the wrong setup and you'll grade a beautiful, dead-flat pitch that puddles after the first heavy rain.
- A rotary laser level for sports pitch construction needs a dual-slope function to build falls into football pitches, MUGAs and cricket outfields.
- Grettz G60 Rotary Laser Level Kit covers single-slope grading and long corner-to-corner reads on open sites for 2026 builds.
- Grettz G80 Green Beam Dual Slope Rotary Laser adds a second axis for compound falls on crowned or cambered pitches.
- Recalibrate on-site before every new pitch contract — drift on a rotary head shows up as a gradual dip across 100m+ runs.
Why rotary laser level matters for sports pitch contractors
A sports pitch is graded to a controlled fall, usually a shallow cross-fall built in deliberately so surface water runs to the perimeter drains rather than sitting mid-pitch. That's the opposite instinct to most groundworks, where the laser's job is to confirm dead level.
Distances are the second problem. A senior football pitch runs well past 100m corner to corner, and a rotary laser has to hold an accurate rotating plane across that whole span, in wind, without a second person babysitting the tripod. A line laser or a digital spirit level physically can't cover that ground — this is rotary laser territory, full stop.
The third issue is repeat visits. Pitch construction runs through sub-base, cultivation, fine grading and turf or carpet laying, often across several weeks in 2026's wetter shoulder seasons. Each visit needs the fall re-checked from the same benchmark, so a laser you trust without re-verifying every read saves real site hours.
Set your benchmark and datum first
Before the rotary laser level goes anywhere near a tripod, fix the finished surface level (FSL) and your temporary benchmark (TBM) against the drawing.
- Confirm the FSL and any cross-fall gradient stated on the drainage design
- Drive a TBM peg somewhere that survives the whole build, not just week one
- Record the peg's reduced level in a site diary, not just on a phone photo
- Cross-check the drawing's fall direction against the actual outfall location on site

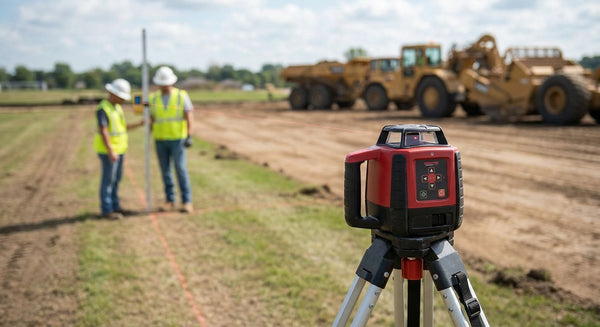

Set up the rotary laser on a stable base
A rotary laser reading is only as good as the tripod it sits on, and open sports sites are windy, uneven, and often soft underfoot after topsoil strip.
- Spread tripod legs wide and push each leg into firm ground, not loose spoil
- Use a heavy-duty tripod rated for outdoor rotary heads, not a lightweight indoor stand
- Check the bubble or auto-level indicator settles before taking any read
- Position the unit centrally so no corner of the pitch sits beyond working range
- Re-check the setup after any gust strong enough to nudge the tripod
This is the point where a manual staff-and-boning-rod approach starts to strain: two-person reads across 100m+ pitches are slow and error-prone compared with a self-levelling rotary head doing the work automatically. The Grettz G60 Rotary Laser Level Kit is built for exactly this — long corner-to-corner reads on open groundworks sites, with tripod, staff and receiver included as one kit.
Grade to falls, not to flat
This is the step that trips up contractors used to housebuilding.
- Confirm whether the design needs a single cross-fall or a compound (dual-axis) fall
- Set the rotary head's slope function to the exact percentage on the drawing, not a rounded estimate
- Grade from the highest point of the fall downward so spoil movement follows the water path
- Re-read the low corner last, since it's the one that reveals a mis-set slope fastest
Single cross-falls (typical on many natural turf pitches, often around 1:100) run fine on a standard rotary laser. Compound falls — crowned pitches, or sites with a fall running two directions — need a genuine dual-slope rotary head. That's where the Grettz G80 Green Beam Dual Slope Rotary Laser earns its place: two independently set slope axes instead of one.
Check levels across the full pitch width
One read at the centre tells you nothing about the edges.
- Take readings at both touchlines, both goal lines, and the centre spot as a minimum grid
- Add mid-pitch checks on anything over 60m to catch mid-span sag
- Compare every read against the same TBM, never against the previous read
- Log readings against a simple grid reference so a second visit can repeat the exact points
Mark out lines and boundaries with stringline
Grading tells you the levels are right; stringline tells you the boundaries are straight.
- Run stringline between corner pegs before cultivation starts, not after
- Use a brightly coloured line so it stays visible against topsoil and mud
- Re-tension the line daily — a slack line on a windy site reads several centimetres off by the afternoon
- Mark touchline and penalty area boundaries off the same stringline run, not separate strings
Verify with a second read before topsoil or turf goes down
Once grading looks finished, don't sign it off on one pass.
- Re-run the full grid of readings after final trimming, not just the low spots
- Compare against the design tolerance stated on the drawing, not a gut feel
- Photograph the receiver display at each corner as a dated record for the client
- Hold the pitch open for one wet-weather test where the programme allows it
Calibrate before every big job
A rotary head that's been in and out of the van all winter can drift without any visible sign.
- Run a quick self-check against a fixed point at the start of a new contract
- Compare readings at two points at least 30m apart to catch axis drift
- Book a proper service check if readings disagree by more than the unit's stated tolerance
- Keep a calibration date logged against the unit, not just remembered
Comparison: grading options for sports pitch construction
| Option | Best for | Key limitation |
|---|---|---|
| Grettz G60 Rotary Laser Kit | Single cross-fall grading on standard pitches | No second slope axis for compound falls |
| Grettz G70 Rotary Laser Kit | Rugged daily use on larger multi-pitch sites | Heavier kit, slower one-person setup |
| Grettz G80 Dual Slope Rotary Laser | Crowned pitches and compound-fall drainage designs | Overkill for a single flat cross-fall job |
| Manual staff and boning rods | Very small MUGA or single-goal repairs | Too slow and error-prone past 60-70m spans |
Verdict: for most full-size pitch grading, the Grettz G60 Rotary Laser Level Kit handles the job; only step up to the G80 dual slope unit when the drawing specifies a compound fall.
Common mistakes sports pitch contractors make
- Grading to level instead of to the design fall — a perfectly flat pitch drains nowhere and fails the first storm test.
- Trusting a single centre-pitch reading — edges and corners are where fall errors actually show up.
- Skipping recalibration between contracts — a rotary head that's fine on a 30m garden job can drift enough to matter across 100m.
- Letting stringline sag on windy sites — a slack line moves the marked boundary by several centimetres by mid-afternoon.
- Not logging the TBM properly — a phone photo isn't a record when three different crews visit the site over a six-week build.
“Grade to the fall on the drawing, not to what looks level on the day — a flat pitch fails the first storm test.”
FAQ
What's the best rotary laser level for sports pitch construction?
For most full-size pitches, a single-slope rotary laser like the Grettz G60 Rotary Laser Level Kit covers the job. Pitches with a crown or compound fall need a dual-slope unit such as the Grettz G80.
Do I need a dual slope rotary laser for football pitch grading?
Only if the design has a compound fall running two directions, such as a crowned pitch. A standard single cross-fall design works fine on a single-slope rotary laser.
How far can a rotary laser level read on an open sports field?
Range depends on the receiver and unit, but rotary lasers are built specifically for long, open-site reads well beyond what a line laser can cover corner to corner.
Is a green beam or red beam rotary laser better for outdoor pitch work?
Both work with a receiver for outdoor daylight reads, since neither beam colour is visible by eye at pitch-length distances in daylight. The receiver, not the beam colour, does the outdoor reading.
How often should a rotary laser level be calibrated on a groundworks contract?
Check accuracy at the start of every new contract and after any knock or drop, then book a full calibration if two widely spaced readings disagree.
Can I use a rotary laser level for cricket square preparation?
Yes, a rotary laser grades a cricket square the same way it grades a football pitch, checking level across the square against the same benchmark on repeat visits.
What fall should a natural turf pitch be graded to?
Natural turf pitches are commonly graded to a shallow cross-fall, often around 1:100, so surface water runs to the perimeter drains rather than pooling mid-pitch. Always follow the fall stated on the specific drainage design.
Do I need a laser receiver for outdoor pitch grading in daylight?
Yes, a receiver is standard for any outdoor rotary laser work since the rotating beam isn't reliably visible by eye across pitch-length distances in daylight.
One last thing
The detail that catches most first-time pitch contractors out isn't the laser at all — it's re-tensioning stringline daily. A line that's fine at 8am can sag enough by 3pm on an exposed site to shift a marked touchline by several centimetres, and nobody notices until the pitch is measured after turfing. Check the string, not just the laser, Grettz rates as basic groundworks discipline as much as any piece of kit.
