Laser Level for Swimming Pool Tiling (2026 Guide)
Aug 30, 2026
Swimming pool tiling and coping needs a laser level that holds a true datum across a curved, often uneven shell, then transfers that level to coping stones and pool-edge tiles with millimetre consistency. Standard site work tolerates a few millimetres of drift over a wall; a pool coping line shows every error the moment water sits against it, so the segment's accuracy demands sit closer to groundworks than to general tiling.
- Grettz G60 rotary laser sets coping levels around a full pool perimeter from one setup.
- Green beam lasers like the G4D read better than red beam in bright outdoor pool areas.
- Check the shell for settlement before tiling — a laser level for swimming pool tiling catches drift a spirit level misses.
- Digital spirit levels such as the GL120 confirm individual tile courses once the rotary datum is set.
- Stringline still earns its place for marking waterline height before the laser goes up.
Why a laser level for swimming pool tiling matters
Pool shells move before they're tiled. Concrete cures unevenly, ground conditions shift under the pool's weight, and by the time a tiler arrives the coping edge can be out of level by more than the tile joint allows. A laser level for swimming pool tiling gives you one fixed reference plane across the entire perimeter, so every coping stone and waterline tile sits against the same datum rather than against whatever the shell happened to do.
Outdoor pool work also fights bright daylight for most of the year, which is why beam colour matters here more than on an indoor bathroom job. A dedicated guide on rotary laser level for swimming pool installation covers the setup side in more depth; this guide focuses specifically on the tiling and coping stage that follows.
Set the finished waterline datum first
Everything on a pool tiling job references back to the finished water level, so get that mark right before anything else moves.
- Pull the finished waterline height from the pool design drawing, not from the shell as-built.
- Mark the datum on at least three fixed points around the perimeter — corners are best.
- Use a steel tape, not a fabric one, when transferring the datum measurement from drawing to site.
- Record the datum in writing on a batten or post before the laser goes up, so a knocked tripod doesn't lose the reference.
Set a rotary laser for coping levels around the full perimeter
A rotary laser is the only practical way to hold one level plane around a pool that might be 8 to 12 metres across, since a single setup covers the whole perimeter without repositioning.
- Centre the tripod where the beam has clear line of sight to every coping section, including curved ends.
- Set the unit to self-level and confirm the indicator shows a locked, stable beam before taking any readings.
- Take a reading at each corner and at 2-3 metre intervals along straight runs to catch shell settlement early.
- Mark each reading directly onto the coping substrate in permanent marker, referenced back to the waterline datum.
The Grettz G60 Red Beam Rotary Laser Level Kit is built for exactly this kind of perimeter work, with a working range that covers a full-size domestic pool from one central setup and a receiver that reads the beam in daylight.
Check the shell for out-of-level settlement before you tile
Tiling over an already-uneven shell locks the error into every course above it, so this check happens before adhesive touches the substrate.
- Compare rotary laser readings at four opposite points on the shell — north, south, east, west.
- Flag any variance over 3mm across a 5-metre run as a settlement issue, not a tiling tolerance issue.
- Photograph and log readings before covering the shell, in case a dispute comes up later over who's responsible for what.
- Re-check readings after any screed or render layer is applied, since screed itself can shift slightly as it cures.

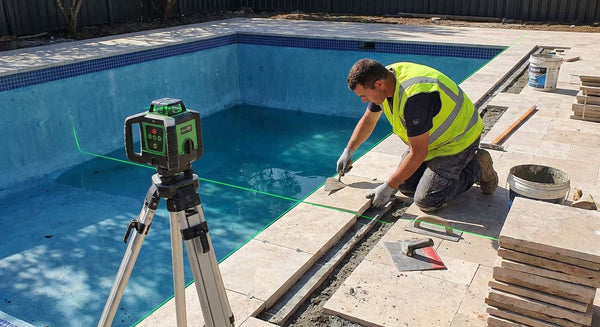

Use a green beam laser for vertical tile lines on pool walls
Once the coping datum is set, vertical wall tiling needs its own line, and a green beam holds up far better outdoors than red.
- Position a multi-line laser to project both a vertical line and a horizontal line at the first course height.
- Use the vertical line to keep grout joints running true up the pool wall, not just level.
- Work from the laser line outward in both directions so cumulative tile-width drift doesn't creep into the last course.
- Re-check the line every 4-5 tiles rather than trusting the first setup for the whole wall.
The Grettz G4D Green Beam Multi-Line Laser Kit produces a clearly visible cross-line even in direct sun, which is the main reason green beam has taken over from red beam on outdoor pool jobs in 2026.
Verify surrounding decking falls before coping goes down
Coping sits between the pool edge and the surrounding deck, so a fall error on the deck side shows up as a lippage problem on the coping line.
- Set decking falls to shed water away from the pool at roughly 1:80 to 1:100, matching the drawing spec.
- Cross-check deck fall readings against the rotary laser datum at the coping junction, not against the deck alone.
- Mark fall direction on the substrate with chalk before screeding, so the falls read correctly under a trowel.
- Recheck falls after screed cures, since shrinkage can flatten a fall that looked correct when wet.
Confirm individual courses with a digital spirit level as you go
The laser sets the datum; a digital spirit level confirms each course sits true against it without needing the laser running constantly.
- Check every third or fourth coping stone against the level, not just the first and last.
- Use the digital readout to catch fractional-degree drift a bubble level would miss.
- Keep the level flat against the tile face, not against grout lines, for an accurate reading.
- Log any reading outside tolerance immediately rather than waiting until the run is grouted.
The Grettz GL120 1200mm Digital Spirit Level gives a numeric readout rather than a bubble estimate, which matters when a coping run needs documented proof of level for sign-off.
Mark waterline height with stringline before the final course
Stringline still has a job on a pool site even with a laser running, mainly for the physical waterline tile line where a laser dot can get lost against reflective tile.
- Run stringline between the datum marks at exact waterline height, pulled tight enough not to sag.
- Use a bright colour stringline against light-coloured tile so the line stays visible in bright sun.
- Check stringline tension every hour on a long run — sun and handling both loosen it over a shift.
- Replace stringline that's kinked or frayed rather than working around a bad section.
Options compared for pool tiling and coping
| Option | Best for | Starting price | Key limitation |
|---|---|---|---|
| Rotary laser (G60) | Setting the perimeter datum in one setup | £374.99 | Needs a receiver for outdoor daylight reading |
| Green beam multi-line (G4D) | Vertical wall tile lines and short-range work | £254.99 | Beam visibility drops beyond roughly 20-25 metres outdoors |
| Digital spirit level (GL120) | Course-by-course confirmation checks | £169.99 | Doesn't cover a full perimeter alone |
| Stringline (100m reels) | Physical waterline marking against reflective tile | Priced per reel length | No self-levelling — relies on accurate datum marks |
Verdict: the Grettz G60 rotary laser is the right primary tool for pool coping, with a green beam multi-line laser and a digital spirit level as the follow-up checks that catch what the rotary setup can't see close up.
Common mistakes on pool tiling and coping jobs
- Trusting the shell's original level without re-checking. Shells settle after the initial pour, and coping laid to outdated readings sits proud or hollow against the water line.
- Using a red beam laser in full sun. Red beam washes out against reflective pool tile and light-coloured coping stone; green beam holds visibility far better in the same conditions.
- Skipping the deck fall check at the coping junction. A correct pool datum with an incorrect deck fall still produces standing water at the coping edge.
- Grouting before confirming the last few courses. Once grout goes in, correcting a level error means breaking tile out — always confirm with a digital spirit level before the final course sets.
“A pool coping line shows every millimetre of error the moment water sits against it.”
FAQ
What's the best laser level for swimming pool tiling?
A rotary laser like the Grettz G60 sets the perimeter datum for coping, paired with a green beam multi-line laser for vertical wall tile lines. Use both together rather than relying on one tool for the whole job.
Is a green beam laser better than red beam for outdoor pool work?
Yes — green beam reads more clearly than red beam in direct sunlight and against reflective pool tile. Most outdoor pool jobs in 2026 use green beam for this reason.
How much does a laser level for pool tiling cost?
A rotary laser kit suited to pool perimeter work starts around £374.99, while a green beam multi-line laser for wall tiling starts around £254.99. A digital spirit level for course checks adds around £169.99.
Do I need a rotary laser and a line laser, or just one?
Pool tiling benefits from both — the rotary laser covers the full perimeter datum in one setup, while a line laser handles vertical tile alignment on individual wall sections.
How often should shell level be re-checked before tiling?
Check at least at four opposite points before tiling starts, then again after any screed or render layer cures. Shell settlement and screed shrinkage can both shift readings after the first check.
Can I use a laser level for both coping and pool decking?
Yes — the same rotary laser datum used for coping should be cross-checked against deck falls at the coping junction, since an error at that junction causes water pooling at the edge.
Does stringline still matter if I have a laser level?
Stringline is useful for marking the exact waterline height against reflective tile, where a laser dot can be hard to see. It works alongside the laser datum, not instead of it.
How accurate does a laser level need to be for pool coping?
Coping tolerance is tighter than general building work — variance over 3mm across a 5-metre run should be flagged as a settlement issue rather than accepted as normal tiling tolerance.
One last thing
Most pool tiling call-backs in 2026 trace back to the deck fall check getting skipped, not to the coping line itself — a coping run can read perfectly level and still pool water if the surrounding deck fall wasn't cross-checked at the junction. Run that check every time, even on jobs where the coping datum looks flawless.
