Laser Level for Garden Room Installation: 2026 Guide
Sep 01, 2026
Garden room installation with a laser level means holding one level plane across the entire base, frame and roofline, not checking each stud with a spirit level and hoping the corners agree. Get the datum wrong at the footings and it turns up later at the door head, the roof fall, and the patio that's meant to butt up against the wall.
- A rotary laser like the Grettz G60 sets one level plane across a full garden room base in one setup, not corner-by-corner guesswork.
- A multi-line green beam laser (Grettz G4D) checks plumb and square on timber frame walls once the slab is down.
- Stringline and a tape measure still do the initial footprint marking-out job; the laser takes over once you need a level reference across the whole site.
- A digital spirit level reads individual studs, openings and top plates faster than a bubble level once the frame is standing.
- Skip a basic cross-line laser outdoors on a bright day; a self-levelling rotary with a receiver keeps working where a green line washes out.
Why a laser level matters for garden room installation
A garden room base is usually 3m to 6m across, sometimes bigger, and every corner has to sit on the same level plane or the frame twists as it goes up. A hand spirit level checks one point at a time; it doesn't tell you if the corner 4 metres away has drifted 8mm out.
UK building guidance on damp-proofing calls for the finished floor level to sit at least 150mm above the surrounding finished ground level, and that clearance has to be consistent around all four sides, not just the front. If your levelling reference shifts between corners, one side ends up under the DPC line while the other's fine.
Setting out a shed or outbuilding base has the same core problem, and the approach carries over directly, right down to using one fixed datum for the whole footprint (see rotary laser level for shed and outbuilding bases for the base-specific detail). Garden rooms add the wrinkle of finished internal floors, insulation depth and often a step down to an adjoining patio, so the level reference has to stay accurate through several more stages of build.
How to use a laser level for garden room installation, step by step
Mark out the footprint and datum point
Before any laser goes up, the footprint has to be square and pegged. This is manual work — a laser doesn't fix a badly marked-out base.
- Drive pegs at each corner and run stringline between them to define the footprint
- Measure both diagonals with a steel tape; equal diagonals confirm a square rectangle
- Set a fixed datum peg outside the working area that won't get disturbed
- Mark the intended DPC height on a profile board next to the datum
- Check the ground fall across the site by eye before committing to a dig depth
Check the sub-base and slab level across the full footprint

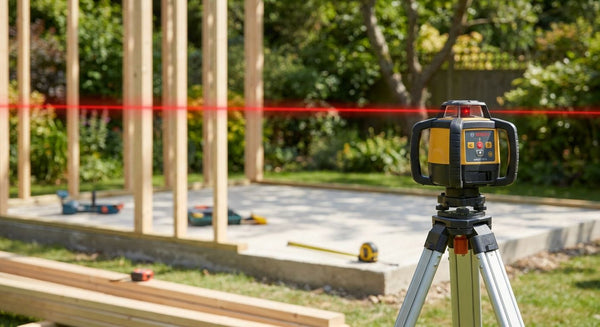

Once the footprint is pegged, a self-levelling rotary laser sets one level plane you can read from any point on site, which is the step where a manual spirit level starts falling short on anything bigger than a single joist.
- Set the tripod roughly central to the footprint and let the head self-level
- Rotate the laser a full 360 degrees and check the beam reads level at all four corners
- Use a staff and receiver to record the height difference between each corner and the datum
- Compensate the sub-base depth at each corner so the compacted hardcore finishes level
- Re-check after compaction — hardcore settles unevenly and the level can drift a few millimetres
A Grettz G60 rotary laser level kit covers this stage in one setup rather than moving a spirit level and straightedge across the whole base.
Set a consistent finished floor level and DPC line
With the sub-base level, transfer the DPC and finished floor level to every corner and to the profile boards so bricklayers or frame installers all work from the same numbers.
- Mark DPC height on profile boards at a minimum 150mm above the finished external ground level
- Check the DPC mark reads level at all four corners against the rotary laser, not just two
- Record the datum offset in writing so it's not lost between trades
- Confirm the finished floor level allows for flooring build-up (insulation, deck boards, screed)
- Check ground clearance again once any patio or path is laid next to the room
Plumb and square the timber frame walls
Once the frame goes up, the job shifts from one flat plane to vertical lines on every corner stud, which is where a multi-line green beam laser earns its keep over a rotary unit.
- Project a vertical line up the corner studs and check it stays flush from base to head
- Square opposite walls against the laser's horizontal line rather than eyeing it
- Adjust packers under the sole plate before fixing anything permanently
- Check the top plate reads level across its full length, not just at the ends
- Cross-check plumb readings with a digital spirit level where the laser beam is hard to see
A Grettz G4D green beam multi-line laser kit throws both horizontal and vertical reference lines at once, which cuts down the number of times you reposition a laser for frame work.
Level the roof line and check guttering fall
The wall plate needs to read level all the way round before roof trusses or joists go on, and the gutter line needs a visible fall towards the downpipe.
- Check wall plate height at every corner against the same rotary laser reference used for the base
- Confirm ridge height (on pitched roofs) is level side to side before fixing rafters
- Set gutter brackets to a consistent, visible fall towards the outlet
- Check the fall runs in one direction only — no dips that hold standing water
- Re-check roof line level after fixing, since fixings can pull timber slightly out of true
Check window and door openings for square
Openings get checked one at a time, and this is where a digital spirit level is faster than repositioning a laser for every frame.
- Check jambs read plumb on both faces, not just the visible one
- Confirm the head is level before fixing the frame
- Check diagonals across the opening for square, same principle as the footprint
- Use a magnetic base on steel lintels for a hands-free reading
- Record any packing needed before final fixing so the frame doesn't bind later
Finish external levels around the garden room
The job isn't done until the ground around the room matches the level plan — patios, paths and decking all need to tie back into the same datum.
- Extend stringline from the original datum to mark patio or path edges
- Check the finished patio level sits below the DPC line, not level with it or above
- Set a slight fall away from the building on any adjoining hard landscaping
- Re-check the DPC clearance once the final surface is laid and compacted
Comparing your options for garden room levelling
| Option | Best for | Key limitation |
|---|---|---|
| Stringline and pegs | Marking out the footprint before any laser is set up | No self-levelling, needs a spirit level to confirm accuracy |
| Grettz G60 rotary laser | Setting one level plane across a full base or slab outdoors | Needs a tripod and staff; overkill for a single opening check |
| Grettz G4D multi-line laser | Plumb and square checks on timber frame walls | Green beam visibility drops in strong midday sun without glasses |
| Grettz GL120 digital spirit level | Checking individual studs, openings and top plates | Reads one surface at a time, not a whole-site reference |
A rotary laser for garden room installation earns its keep the moment the footprint gets bigger than one person can check with a spirit level alone.
Common mistakes on garden room installation
- Levelling the base off a spirit level alone — errors of a few millimetres per check compound across a 4m-plus footprint and show up as a twisted frame later.
- Ignoring the DPC-to-ground clearance — setting the finished floor level too low means the DPC line sits too close to the surrounding ground once landscaping goes in.
- Not planning the fall on adjoining patios or decking — water runs back towards the wall instead of away from it if the laser check stops at the building line.
- Skipping a calibration check before the job — a laser that's drifted a few millimetres at 10m throws the whole base out of level corner to corner, and you won't see it until the frame's up.
FAQ
What's the best laser level for garden room installation?
A self-levelling rotary laser, such as the Grettz G60, is the best laser level for garden room installation because it holds one level reference across the whole base outdoors. A multi-line green beam laser like the Grettz G4D takes over once the frame is up, for plumb and square checks on walls.
Do I need a rotary laser or is a cross-line laser enough for a garden room?
A rotary laser is better for the base and footprint because it projects a level plane across the whole site, not just one wall. A cross-line laser is enough once you're working on individual walls or openings during framing.
How accurate does a laser level need to be for a garden room base?
The level reference across the whole footprint needs to hold within a few millimetres corner to corner, since larger errors compound as the frame goes up and affect the DPC line and floor build-up.
Can I use a laser level outdoors in daylight for garden room work?
Yes, but a green beam laser is more visible than a red beam in daylight, and a rotary laser with a receiver keeps working in bright sun where a basic line laser washes out.
How do I check my laser level is still accurate before a garden room job?
Run a quick drift check by comparing readings at two points roughly 10m apart before starting the base. If the readings disagree by more than a couple of millimetres, get the unit calibrated before relying on it for a garden room base.
What height should the DPC be on a garden room?
UK guidance calls for the damp-proof course to sit a minimum of 150mm above the finished external ground level, and that clearance needs checking at all four corners, not just the front elevation.
Is a digital spirit level enough on its own for a garden room?
No. A digital spirit level checks one surface at a time, such as a stud, lintel or top plate, but it can't give you a level reference across the whole footprint the way a rotary laser does.
How do I set the fall for guttering on a garden room with a laser level?
Set the wall plate level first with a rotary laser, then check the gutter brackets read a consistent fall towards the downpipe in one direction, with no dips that hold water.
One last thing
Most garden room bases don't fail because the laser was wrong — they fail because nobody checked the laser before the job started. A 3mm drift at 10m sounds small until it's stacked across four corners of a 5m base, and by the time the frame's standing it's a door that won't close square. Run the drift check every time a laser comes out of storage for the season, not just once a year.
