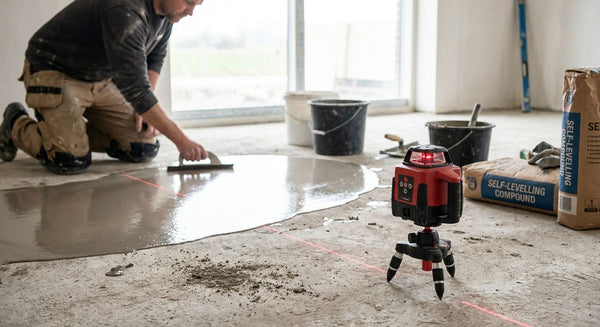

Laser Levels for Floor Screeding: Datum, Depth and Flatness Explained

A laser can help you control a screed datum. It does not, by itself, prove that the finished screed meets a specified surface-regularity class.

Before the pour: establish the datum

Set a stable reference and use it to compare heights around the working area. On larger areas, a rotary laser with a receiver is often convenient because one person can take readings at many points.

During the pour: control height

The laser reference can help transfer target heights and identify high or low areas while the screed is being placed. Protect the laser position so the datum is not accidentally disturbed.

After the pour: use the specified check

Finished surface regularity is normally assessed using the method required by the project specification or relevant standard. A laser is useful evidence of level and height, but it should not be described as the test for every screed tolerance.

Which Grettz laser?

For larger floor areas, a G60-type rotary and receiver is the natural starting point. For smaller internal layout and visible reference work, a G4D can be more convenient. A long physical level or straightedge still has a separate role when checking the surface directly.

The bottom line

Think of the process as three separate jobs: establish the datum, control the height, then verify the finished surface using the required method. No single tool replaces all three.
