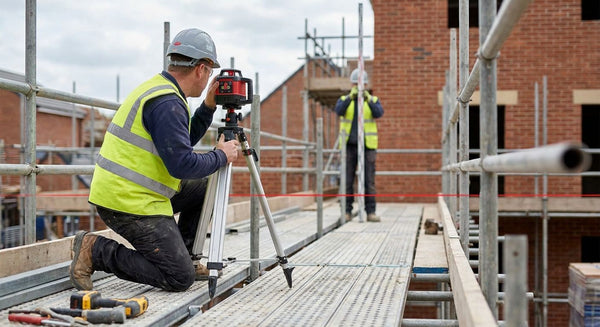

How to Use a Laser Level for Scaffolding Setup 2026
Aug 22, 2026
Getting a laser level onto a scaffold correctly is the difference between a level lift and a stack of standards leaning out by the third row of boards. This guide covers how to use a laser level for scaffolding setup step by step, from tripod placement to checking base plates before anyone climbs.
- A self-levelling rotary laser such as the Grettz G60 sets a scaffolding datum line faster than a spirit level alone — buy one before your next multi-lift job.
- Set the tripod on solid, undisturbed ground; a laser levelled on soft or made-up ground drifts within the first hour of use.
- Check base plates and sole boards with a digital spirit level before trusting the laser reading — a tilted plate throws every reading above it out.
- Recalibrate a site laser at least once a year, or after any knock or drop, before it goes back out on scaffolding work.
- Stringline still earns its place for short runs and edge checks where rigging a full rotary laser isn't worth the time.
Why This Matters
A scaffold that's out of level compounds with every lift. A 3mm error at the base plate becomes a visible lean by the third row of standards, and by the time it's obvious the whole structure needs re-checking board by board. That's hours lost on a job that a correctly set rotary laser avoids in the first place.
Most of the errors tradespeople run into aren't laser errors \u2014 they're setup errors. Ground that's been walked on all morning, a tripod leg on a loose paving slab, a base plate resting on debris. The laser will read exactly what it's given, which is why the setup steps below matter more than the unit itself.
What You'll Need
- A self-levelling rotary laser, such as the Grettz G60 rotary laser level kit, with receiver and staff
- A stable tripod \u2014 see choosing the right tripod for site work if you're buying one for scaffolding specifically
- A digital spirit level (a 1200mm model covers most base plate and sole board checks in one pass)
- A 50m steel surveyors tape for offsetting the datum to working points
- Chalk or a paint pen for marking datum height on standards
- Site PPE and a second pair of hands for reading the staff at distance
Getting the right laser for the job matters more on scaffolding than most site tasks, because you're working across long runs and multiple lifts rather than one room. A rotary laser that self-levels within a few degrees and holds that level across 30-40 metres saves the back-and-forth a line laser can't manage outdoors.
The Steps
1. Choose the datum position before you touch the tripod
Walk the scaffold footprint first and pick a fixed point that won't be disturbed once erection starts \u2014 a boundary wall, a manhole cover, an existing DPC line. Everything you set from the laser gets measured back to this point, so getting it wrong here means re-measuring the whole run later. Mark it clearly with chalk or a stake.
2. Set the tripod on solid, undisturbed ground
Spread the tripod legs wide for stability and push each foot in until it stops moving, checking none of the legs sit on loose spoil, board offcuts or a puddle edge. Ground that shifts under the tripod is the single biggest cause of a laser reading drifting mid-morning on a site that read fine at 8am. If the ground is soft, lay a paving slab or timber pad under each leg before setting up.
3. Level the rotary laser and let it settle
Switch the unit on and let the self-levelling mechanism find true level \u2014 most units take a few seconds and will flash or beep if they're outside their self-levelling range, telling you to re-seat the tripod. Don't rush this step by taking a reading before the indicator confirms level; a laser that hasn't fully settled will read close but not correct, and close is exactly the kind of error that doesn't show up until the third lift. For a full outdoor rig walkthrough, setting up a rotary laser level outdoors covers wind, distance and beam visibility in more depth than fits here.
4. Establish the datum height on the receiver
With the laser level and rotating, hold the receiver against your marked datum point and slide it until it beeps or shows centred on the display. Note the height on the staff at this point \u2014 this is your zero, and every other reading on site gets compared back to it, not to ground level or an assumed finished floor height.
5. Check base plates and sole boards before erecting standards
Run the receiver across every base plate location and record the offset from datum at each one. Base plates sitting on uneven ground or a compacted-but-not-flat surface will read differently even a few metres apart, and that difference carries straight up through the standards. Use a digital spirit level, such as the Grettz GL120, across each sole board before the base plate goes down \u2014 the laser tells you the height difference, the spirit level tells you whether the board itself is sitting flat.
6. Level ledgers and transoms as each lift goes up
Check the receiver reading at each standard as the first lift goes in, adjusting base plates with packers rather than forcing a standard that's reading high or low. Don't wait until the whole lift is up to check \u2014 correcting one standard is a five-minute job, correcting a full completed lift means stripping boards back down.
7. Re-check the datum after any interruption
If the laser gets knocked, the tripod gets moved, or work stops for more than an hour on a windy site, re-check the receiver against your original datum mark before trusting the next reading. A laser that's been bumped can still appear level on its own indicator while reading a few millimetres out against your actual datum, and that's the error that ends up in the third-lift lean nobody can explain.
Troubleshooting
Receiver won't find the beam at distance. Check nothing is obstructing the line \u2014 site fencing, a stacked pallet, a passing vehicle \u2014 and confirm the laser's rotation speed setting matches what the receiver expects.
Readings drift over the course of the day. This is almost always ground movement under the tripod, not the laser itself; re-seat the tripod feet and re-zero against your datum rather than assuming the unit needs recalibrating.
Laser won't self-level. Most units flash or lock out if the tripod is tilted beyond their self-levelling range \u2014 loosen the tripod legs and re-set them closer to level manually before switching back on.
Two different readings from two operators. Confirm both receivers are set to the same measurement mode and both are being held at the same orientation against the staff; a tilted receiver reads differently than a level one.
Unit reads fine indoors but not on site. If a laser that checks out accurate on a bench test is reading wrong on scaffolding, run how to check laser level accuracy at home first to rule out the unit before blaming site conditions.
Tools and Resources
- Rotary laser with receiver and staff, for the vertical datum
- A 1200mm digital spirit level for base plate and sole board checks
- A 50m steel tape for offsetting the datum to fixed points
- 100m stringline in a bright colour for edge lines where a full laser rig isn't justified
- Chalk, paint pen or stakes for marking the datum on site
What to Do Next
Once the scaffold's up and levelled, the laser doesn't go back in the case. Recheck the datum weekly on longer jobs and after any weather event that could have shifted ground under the base plates \u2014 a laser that was accurate on day one of a six-week job isn't guaranteed to still be accurate on day thirty without a re-check. If the unit itself is due a service, rotary laser levels for groundworks covers the same levelling principles applied to the ground stage before scaffolding ever goes up, worth reading if the site's still in early setup.
FAQ
Can you use a laser level for scaffolding setup on uneven ground?
Yes, a self-levelling rotary laser corrects for tripod tilt within its self-levelling range, but the base plates themselves still need checking with a spirit level since the laser only measures height, not whether the ground under each plate is flat.
What's the best laser level for scaffolding work?
A self-levelling rotary laser with a receiver, such as the Grettz G60, is the standard choice for scaffolding because it covers long runs and multiple lifts without repositioning, unlike a line laser designed for shorter indoor distances.
How often should a site laser level be recalibrated?
A laser used regularly on site should be checked at least once a year and immediately after any drop or knock, since accuracy drifts gradually even when the unit still appears to self-level correctly.
Is a rotary laser better than a spirit level for scaffolding?
A rotary laser is faster and more consistent across long scaffold runs, but a digital spirit level is still needed to check individual base plates and sole boards before the laser reading above them can be trusted.
How do you check base plates before erecting scaffolding?
Lay a digital spirit level across each sole board and base plate location before the standard goes up, then cross-check the height with a laser receiver reading against your fixed datum point.
What distance can a rotary laser cover on a scaffolding job?
Most rotary lasers used for scaffolding work reliably across a typical scaffold footprint with a compatible receiver, though beam visibility drops in bright sunlight, which is when a receiver becomes necessary rather than optional.
Do you need a laser detector to use a rotary laser outdoors?
Yes — outdoors, sunlight washes out a visible beam at distance, so a laser receiver that beeps or displays when centred on the beam is standard equipment for any outdoor scaffolding or groundworks job.
Can stringline replace a laser level for scaffolding?
Stringline works for short edge checks and quick visual reference lines, but it can't carry a height datum across a full scaffold run the way a rotary laser does, so most trades use both for different parts of the job.
One Last Thing
The part most trades skip is re-checking the datum after lunch. Ground settles, tripods get nudged, and a laser that read spot-on at 8am can be reading a few millimetres off by 1pm without anyone touching the unit itself \u2014 a thirty-second re-check against your original mark catches it before it becomes a lift you have to strip back down.
