How to Use a Digital Spirit Level for Garage Doors 2026
Aug 30, 2026
A digital spirit level checks garage door headers, tracks and panels against an exact 0.0° reading, not a bubble that looks close enough — get that number right before you drive a single fixing and the door runs true well past 2026.
- Read the degree or mm/m display, not the bubble, when levelling garage door headers and tracks.
- Grettz GL120 1200mm digital spirit level spans a standard door width in one pass — buy it for headers.
- Check both vertical tracks separately for plumb; a level header alone won't catch an out-of-square opening.
- A 600mm digital level suits tracks and panels but needs repositioning across openings over 2100mm.
Why this matters
A garage door only runs smoothly if the header, both vertical tracks and the finished panel line all read true. A standard bubble level tells you it looks close enough — a digital spirit level tells you the header is out by 0.4° or the left track is 1.2° off plumb, and that's the difference between a door that glides in 2026 and one that starts binding within six months.
Most call-outs for sticking or grinding garage doors trace back to an opening that was never checked with a real readout at install. The header gets shimmed by eye, the tracks get bolted to a wall that's slightly out of true, and nobody catches it until the rollers wear unevenly. A GL120 1200mm digital spirit level removes the guesswork a bubble and a squint can't manage.

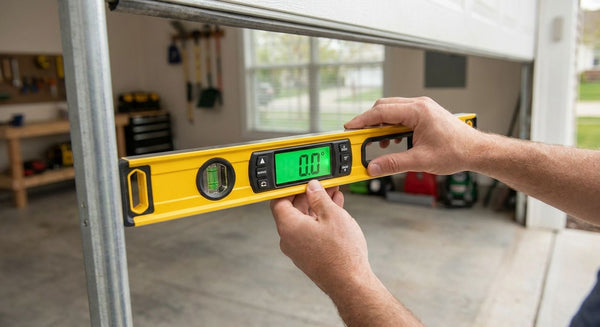

How to use a digital spirit level for garage doors
Work through the opening in this order — header first, then each track, then the fitted panel.
- Zero and check the level first. Lay it on a flat reference surface, note the reading, flip it 180°, and check the reading matches. If it doesn't, the level itself needs recalibrating before it goes near the door.
- Set the level across the header. Rest the digital spirit level flat along the top of the opening or the lintel. Read the display in degrees or mm/m rather than watching the bubble.
- Shim until you hit 0.0°. Pack shims behind the header fixing points and recheck after every adjustment. Don't fix anything permanently until the display holds a true reading.
- Check each vertical track for plumb. Hold the level flush against the inside face of the track. Both tracks should read 0.0° independently — a header that's level tells you nothing about whether the sides are plumb.
- Fit the panel and recheck. Once the first panel or the up-and-over leaf is hung, run the level along the bottom edge. A panel that reads level but sits against tracks that were never checked will still bind.
- Confirm the diagonals. Measure corner to corner with a tape measure. Equal diagonals mean the frame is square — a spirit level reading alone can't confirm this.
Grettz GL120 (1200mm) – £169.99: best for header spans
A standard single garage door opening runs close to the full 1200mm length of the Grettz GL120 digital spirit level, which means one placement across the header gives a full-width reading without moving the level and re-zeroing halfway through.
Its dual backlit display makes the readout usable in a dim garage opening or under a car port, and the 1200mm body doubles as a straightedge for checking the header for bow before you shim anything. Best for: full-width header checks and larger up-and-over doors. Skip it if you're only ever working panel-by-panel in a tight utility space — a shorter level handles that job with less swinging around.
Grettz GL60 (600mm) – £105.99: best for tracks and panels
The Grettz GL60 600mm digital spirit level is the better fit for vertical track checks, where a 1200mm body is longer than the section you're actually measuring and gets awkward to hold flush. It's also easier to manoeuvre inside a garage cavity once the frame is already fixed and space is tight.
The trade-off is coverage — checking a 2100mm-plus header means repositioning the level two or three times and re-zeroing between reads, which adds a few extra minutes on site. Best for: track plumb checks and panel-by-panel work. Skip it for full-header single-pass checks on wide openings; that's the GL120's job.
Which length for which garage door job
| Job | GL60 (600mm, £105.99) | GL120 (1200mm, £169.99) |
|---|---|---|
| Header across a single opening | Multiple reads needed | One pass, full width |
| Vertical track plumb | Easy to hold flush | Awkward in tight cavities |
| Individual panel edge | Fits most panel widths | Overhangs on narrow panels |
| Checking header for bow | Too short to span | Doubles as a straightedge |
| Verdict | Buy for track and panel work | Buy for header and full-opening work |
Why the reading varies opening to opening
No two garage openings behave the same way once a level goes on them. Expect the numbers to move for these reasons:
- Door width — a wider opening gives a header more distance to sag or bow between fixing points.
- Opening age — older brick and block openings settle over years and are rarely dead level anymore, even if they were when built.
- Track length — longer tracks amplify a small plumb error near the base into a larger deviation at the top.
- Slab unevenness — a garage floor that isn't flat throws off track alignment even when the header reads 0.0°.
- Frame material — timber frames move seasonally with moisture; steel frames don't, but they pass any fabrication error straight into the reading.
- Level length versus opening size — checking a wide header with a short level means several readings that can drift slightly from each other.
Do I need a laser level as well as a digital spirit level for garage doors?
For a single opening, a digital spirit level covers the header, tracks and panel checks on its own. A laser level earns its place when you're setting out a new garage base or extension slab and need a reference line across the whole floor before the frame goes in — the garage door installation guide covers how the two tools split the work on a full build in 2026.
What does the display actually mean?
A reading of 0.0° means the surface is level or plumb depending on orientation, and most digital levels switch between degrees, percent grade and mm/m so you can read whichever unit matches your fitting instructions. For a full breakdown of each mode, the guide to reading a digital spirit level display sets them out in one place.
How often should the level be recalibrated?
A digital spirit level in regular site use should be checked against a known flat reference every few months, and always after a drop. Drift shows up as a small but consistent offset on the flip test in step one — if the two readings disagree, the level needs calibrating before it goes back on a door frame. Grettz handles calibration and servicing in-house, so a level that has drifted doesn't have to be replaced.
FAQ
How do I level a garage door header with a digital spirit level?
Lay the level flat across the header and shim behind the fixing points until the display reads 0.0°. Recheck after every shim adjustment rather than trusting a single reading.
Can I use a 600mm digital level on a full garage door header?
Yes, but you'll need to reposition it two or three times across a standard opening and re-zero between reads. A 1200mm level such as the Grettz GL120 covers most headers in one pass.
What's the difference between a digital spirit level and a bubble level for garage doors?
A digital spirit level gives an exact degree or mm/m figure, while a bubble level only shows roughly centred. On a garage door the difference between 0.0° and 0.5° is enough to cause binding later.
Do both garage door tracks need checking separately?
Yes, a level header does not confirm the tracks are plumb. Check each track independently with the level held flush against its inside face.
Is a laser level better than a digital spirit level for garage doors?
No, a digital spirit level is the right tool for header, track and panel checks on an existing opening. A laser level is more useful when setting out a new slab or base before the frame is built.
What does 0.0° mean on a digital spirit level?
0.0° means the surface is level when the tool sits horizontally, or plumb when it is held vertically. The reading depends entirely on how the level is oriented against the surface.
How much does an out-of-level garage door header matter?
A header off by a fraction of a degree can throw the tracks out of alignment over the full height of the opening. That leads to rollers binding or wearing unevenly within months.
How much does a digital spirit level cost in 2026?
The Grettz GL60 600mm digital spirit level is £105.99 and the GL120 1200mm is £169.99 in 2026. Length is the main price driver between the two.
One last thing
A header and both tracks can each read a perfect 0.0° and the frame can still be out of square. Measure the two diagonals corner to corner with a tape measure — if they aren't identical, the opening is skewed even though every individual surface passed the level check. Do that diagonal check before the panels go on, not after.
