How to Set Guttering Falls With a Laser Level (2026)
Aug 21, 2026
Guttering that looks level to the eye rarely drains properly, and setting the fall with a laser level is the difference between a run that clears itself in a downpour and one you're back up a ladder scooping out every autumn.
- Setting guttering falls with a laser level needs a minimum gradient of about 1:600 - roughly a 10mm drop over a 6-metre run.
- The Grettz G80 dual-slope rotary laser sets and holds that fall across long runs in one setup. Buy.
- For runs under 3 metres, checking fall with a 1200mm digital spirit level is faster than a full tripod setup.
- Bellied brackets between fixing points, not a bad laser reading, cause most standing water in guttering.
Why this matters
Guttering doesn't need much fall to work - it needs the right fall, consistently, along the whole run. Trade guidance for eaves guttering generally puts the minimum at around 1:600, which on a 6-metre run works out to roughly a 10mm drop from the high end down to the outlet. Undershoot that and water sits in the trough after every downpour, breeding algae and softening the fascia board behind the bracket.
Overshoot it by a lot on a long run and the outlet can't cope in heavy rain, so water backs up and spills over the front lip instead of draining through cleanly. A spirit level or string line gets you close on a 2-metre run. On anything longer - a full elevation, a return around a corner, a run split across two outlets - measuring bracket-by-bracket with a tape and a torpedo level introduces a small error at every fixing point, and those errors add up.
A dual-slope rotary laser like the Grettz G80 Green Beam Dual Slope Rotary Laser Kit lets you dial in the gradient once and projects it across the whole wall, so every bracket goes up against the same reference line instead of a tape measure and hope. That's the setup this guide walks through, plus what to do when a run still won't drain right after you thought it was set.
What you'll need
- A dual-slope rotary laser level (the Grettz G80 handles fall on both axes for corner runs)
- Laser receiver and telescopic staff, usually bundled with the kit
- Tripod with a quick-release head for repositioning along scaffold or ladder runs
- A 1200mm digital spirit level for spot checks on short lengths and joints
- A steel tape measure for marking bracket centres and outlet positions
- Fascia brackets, running outlets, stopped ends matched to your gutter profile
- Chalk or a pencil for marking fixing points, plus a cordless drill
- About 45-60 minutes for a single-storey run of 6-8 metres, longer with corners
The steps
1. Find your outlet and set the datum
The outlet is the one fixed point on the whole run - everything else falls toward it, so mark its centre first and treat that height as your datum. Fix the bracket nearest the outlet at this datum height before you touch the laser.

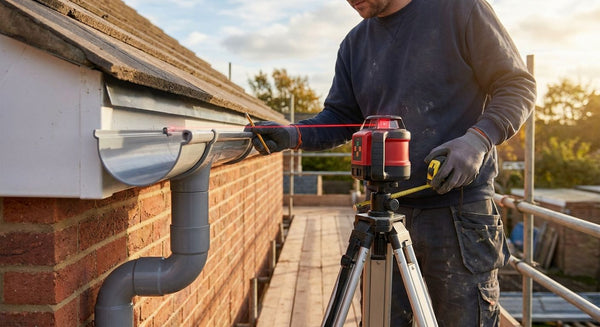

2. Set up and level the rotary laser
Position the tripod where the beam has a clear line along the full run, ideally at gutter height or just below it so the receiver reads without ladder repositioning every metre. Let the unit self-level - most rotary lasers settle within a few seconds and flag an error if the tripod's on soft or sloping ground.
3. Dial in the fall gradient
Switch the laser into slope mode and set the gradient to 1:600, or steeper if your local building control specifies more. On a 6-metre run that's roughly 10mm of drop from the datum bracket to the outlet; on a 12-metre run, double it to around 20mm. Common mistake: entering the slope as a percentage when the unit expects a ratio, which throws every reading downstream out.
4. Fix brackets along the run using the receiver
Work outward from the outlet, holding the receiver against each proposed bracket position and adjusting height until it centres on the beam. Trade guidance for uPVC guttering generally calls for brackets no more than a metre apart, with an extra bracket within 150mm of any joint or outlet, so the gutter doesn't sag between fixings.
5. Check mid-run sag with a digital spirit level
Once brackets are fixed, lay a 1200mm digital spirit level across two or three brackets at a time and read the angle directly rather than eyeballing a bubble. This catches the one bracket that's crept out of line during fixing - the laser told you it was right before the screw went in, but fascia boards flex slightly under load. Expected outcome: a consistent, small downward angle reading at every point along the run, never a flat zero and never a jump.
6. Fit the gutter and re-check the line
Clip the gutter sections into the brackets, working from the outlet outward, and sight along the top edge once it's all in. A gutter line that kinks visibly at a joint usually means one bracket sits proud of the laser line set in step 4 - drop it back before sealing the joint.
7. Run water through it before you call it done
A hosepipe run along the highest point for a minute or two tells you more than any laser reading. Watch for pooling at joints, overshoot at the outlet, or water creeping back toward the high end - any of those means a section still needs adjusting before the job's signed off.
Troubleshooting
- Bracket sags mid-run despite correct end readings - spacing is too wide, or the fascia board is flexing under the fixing. Add a bracket at the midpoint and re-check with the digital spirit level.
- Receiver beeps erratically in bright sun - green beam lasers hold up better outdoors than red, but direct sunlight still washes out the signal. Work early morning or shade the receiver side.
- Fall reads correct on the laser but water still pools at a joint - the joint itself isn't seated flush. Re-check the jointing rubber sits fully home before blaming the fall.
- Rotary head won't hold the dialled-in slope - the tripod is shifting on soft ground, or the gradient dial got nudged while fixing a nearby bracket. Re-level and re-enter the slope before continuing.
- Fall looks steep and rainwater overshoots the outlet in a downpour - the gradient's set well beyond the 1:600 minimum. Ease it back toward the trade standard rather than assuming steeper is always better.
- Corner return doesn't match the main run's fall - each leg needs its own gradient check with the laser reset at the corner post; fall carried around a corner by eye is rarely accurate.
Tools and resources
- A dual-slope rotary laser for corner and multi-elevation work, or a single-slope kit for straight runs only
- A digital spirit level for spot checks and short returns
- A steel tape measure for bracket spacing and marking outlet positions
- Grettz's guide to choosing a laser for guttering installation if you're still deciding between a line laser and a rotary for this job
- Fascia brackets, running outlets, and stopped ends matched to your gutter profile
What to do next
Once the fall's set and the water's running clean, the laser itself is worth a second thought - a unit that's drifted out of calibration will quietly hand you a bad fall on the next job without ever flagging it. Checking accuracy before each big run costs a few minutes and saves a callback in 2026 and beyond.
FAQ
What's the minimum fall for guttering in the UK?
Trade guidance generally sets the minimum fall for eaves guttering at around 1:600, which is roughly a 10mm drop over a 6-metre run. Steeper falls are fine on shorter runs; shallower falls risk standing water and algae.
Can I set gutter falls with a standard spirit level instead of a laser?
A spirit level works on runs up to about 2 metres but loses accuracy over longer distances because errors compound at every bracket. A rotary laser projects one continuous reference line, which is more reliable past 3-4 metres.
How much fall does a 6-metre gutter run need?
At the standard 1:600 minimum, a 6-metre run needs roughly a 10mm drop from the high end to the outlet. Longer runs scale up proportionally - a 12-metre run needs around 20mm.
Is a rotary laser better than a line laser for guttering?
A rotary laser is better for guttering because it projects a level or sloped reference around an entire elevation, including corners, rather than one wall at a time. Line lasers work for short indoor jobs but struggle over exterior runs longer than a few metres.
How far apart should guttering brackets be spaced?
Trade guidance for uPVC guttering generally calls for brackets no more than a metre apart, with an extra bracket within 150mm of any joint or outlet. Wider spacing lets the gutter belly between fixings and creates low points where water sits.
Can too much fall on a gutter cause problems?
Yes - a fall set well beyond the 1:600 minimum can push water past the outlet faster than it can drain in heavy rain, causing overshoot at the front lip. The fix is easing the gradient back toward the standard rather than maximising it.
Do I need a green beam laser for guttering work outdoors?
A green beam is more visible in daylight than red, which helps on bright days, but a laser receiver reads either colour reliably. Green beam kits like the Grettz G80 are the more comfortable choice for full-day outdoor use in 2026.
How do I check a rotary laser is still accurate before a guttering job?
Set the laser up, mark a point on a wall, rotate the unit 180 degrees and check the beam lands on the same mark. A drift of more than a couple of millimetres over a few metres means the unit needs recalibrating before it goes back out on site.
One last thing
The fall you set on paper isn't always the fall you're left with once every bracket's screwed home - fascia boards flex, brackets creep half a degree under load, and the only way to catch it in 2026 is re-checking with a spirit level after fixing, not just trusting the laser reading from before the drill went in.
