Green Laser Level for Electricians: 2026 Buying Guide
Aug 29, 2026
Electricians shopping for a green laser level in 2026 need daylight readability more than extra features — the beam has to hold up against downlighter glare, south-facing windows and site lighting rigs without a detector attached for most first-fix work.
- The Grettz G4D Green Beam Multi-Line Laser Level at £179.99 is the pick for full rewires and multi-room first-fix marking.
- Budget jobs and single-wall socket runs suit the Grettz G2D Mini Cross Line Green Beam Laser at £64.99.
- Green beam reads far brighter to the eye than red at the same output, which matters more than accuracy specs on most sites.
- A green laser level for electricians still needs a wall-check every morning — cold vans and heat drift shift the beam.
Why a green laser level matters for electricians

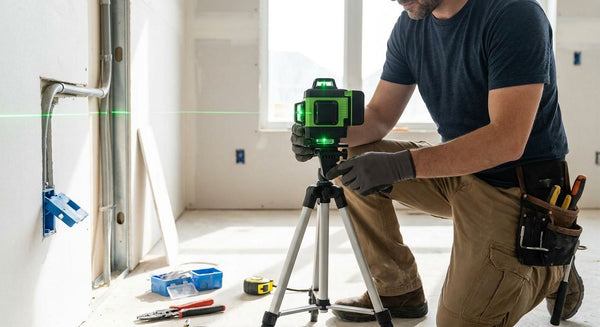

A green laser level for electricians is a self-levelling line laser with a green beam, bought so containment runs, socket heights and consumer unit positions can be marked without squinting or fitting a laser detector for every task. Electricians move between first-fix stud walls, dot-and-dab plasterboard, loft conversions and outdoor consumer unit relocations in the same week, so beam visibility across very different lighting conditions matters more to this trade than to a plasterer working one room at a time.
The Grettz G4D Green Beam Multi-Line Laser Level covers that range of jobs because it projects multiple lines at once rather than a single cross, which cuts the number of times you reposition it on a commercial fit-out. Green wavelength sits near 532nm, close to the peak of human eye sensitivity around 555nm, which is why a green beam laser level reads noticeably brighter than a red one at the same power — a genuine site advantage, not a marketing line.
Match beam colour to your working conditions
Beam colour is the first decision, not the last one. Get this wrong and every socket height on a job gets marked off a line you can barely see by 2pm.
- Green beam laser levels read markedly brighter to the human eye than red beam units at the same output
- Fine for loft conversions, extensions and site cabins lit by downlighters or skylights
- Still fit a laser detector for long runs across open-plan rooms or outdoor consumer unit positions
- Check the beam against a painted wall in daylight before relying on it for a whole job
- Keep a red beam unit only as backup if working exclusively under artificial light indoors
Set socket and switch heights before first-fix marking
Height decisions made at first-fix are the ones that get checked at final inspection. A laser line saves re-measuring every box by hand, but only if it's set once and trusted for the whole floor.
- Set switches at 900mm-1200mm from finished floor level per Approved Document M guidance
- Set socket outlets no lower than 450mm from finished floor level
- Mark a continuous reference line before drilling any first-fix boxes
- Use a self-levelling cross-line so the height carries around corners without re-setting
- Cross-check against the DPC line during new-build first-fix
Mark containment and cable routes in one pass
Containment runs and cable routes eat time when they're chalk-lined twice. A cross-line or multi-line laser fixes that by giving a horizontal and vertical reference in the same setup.
- Set a single continuous line for surface trunking runs instead of chalk-lining twice
- Use cross-line output for corner boxes where horizontal and vertical both matter
- Mark first-fix cable entry points against the same reference line used for socket heights
- Use a pulse-detector-compatible unit if the beam has to cross a skip-lit landing or stairwell
- Lock the tripod at one working height per floor to avoid re-referencing every room
Choose between a cross-line and a multi-line unit
This is where budget and job type actually diverge. A single rewire doesn't need the same kit as a commercial fit-out running three trades side by side.
- A single cross-line unit like the Grettz G2D Mini Cross Line Green Beam Laser covers one wall at a time — enough for a domestic rewire
- A multi-line laser projects several lines around the room at once, useful on commercial fit-outs with multiple containment runs
- Multi-line units cost more but cut the number of repositions needed per job
- Check working range against site size — larger warehouses and industrial units need the longer range of a multi-line kit
- Battery runtime matters more on multi-day commercial jobs than on a single domestic rewire
Mount the laser correctly on studwork, ladders and tripods
A laser level is only as good as what it's sat on. A wobbling stepladder or a flexing scaffold board undoes any accuracy spec on the box.
- Use magnetic brackets on steel studwork where a tripod won't fit
- A tripod and pole set gives a consistent working height across a room without repositioning on a stepladder
- Avoid resting the unit on scaffold boards that flex under foot traffic
- Check the self-levelling range before mounting on sloped or uneven floors
- Keep the laser off direct sunlight through south-facing windows — even green beams wash out in direct glare
Check accuracy before you trust a wall of sockets
A laser level that's drifted doesn't announce itself. The only way to catch it is a quick check before the job starts, not after the boxes are drilled.
- Run a 5m out-and-back check against a fixed wall mark before starting a socket run
- Recalibrate or return the unit for servicing if the beam drifts more than a few millimetres over that distance
- Log the check date on multi-week commercial jobs so drift can be traced back
- Compare opposite walls in the same room — if the lines don't meet, the unit needs checking
Store and maintain the unit between call-outs
Most laser level faults on site trace back to how the unit lived in the van, not a manufacturing fault.
- Store the laser level in its case, not loose in the van tool box
- Keep it separate from stringline reels or tape measures — a hard case prevents the lens getting scratched
- Charge or replace batteries before the next call-out, not on-site
- Book calibration if it's been dropped or hasn't been checked in the last twelve months
Comparing green laser levels for electricians
| Option | Best for | Starting price | Key limitation |
|---|---|---|---|
| Grettz G2D Mini Cross Line Green Beam Laser | Single-wall socket runs, domestic rewires | £64.99 | One cross-line only, shorter working range in bright rooms |
| Grettz G4D Green Beam Multi-Line Laser Level | Full first-fix and containment marking across multiple rooms | £179.99 | No tripod or pole included — needs a separate mount |
| Grettz G4D Green Beam Multi-Line Laser Kit | Solo electricians who need instant tripod setup on arrival | £254.99 | Heavier kit to carry between vans and lofts |
The Grettz G4D Green Beam Multi-Line Laser Level is the sensible middle ground for most electricians in 2026 — it covers domestic rewires and small commercial fit-outs without paying for the tripod bundle if you already own one.
Common mistakes electricians make with green laser levels
- Trusting a cold beam. A laser level left in an unheated van overnight can drift before it settles — run the wall-check after it's warmed to room temperature, not the moment it's unpacked.
- Skipping the detector outdoors. Consumer unit relocations and outbuilding wiring done in direct sunlight lose even a bright green beam — a detector solves this in seconds.
- Ignoring wall build-up. Stud walls and dot-and-dab plasterboard finish at different depths, so a socket height marked off the laser line still needs checking against the actual finished face.
- Using the wrong unit for the job size. A single cross-line laser on a three-storey commercial fit-out means constant repositioning — a multi-line unit earns its price back in time saved.
- Never logging calibration checks. On multi-week jobs, an unlogged drift issue means every socket marked since the last check is now suspect.
FAQ
What's the best green laser level for electricians in 2026?
The Grettz G4D Green Beam Multi-Line Laser Level at £179.99 suits most electricians because it covers domestic rewires and small commercial fit-outs with multiple lines rather than a single cross. Budget single-wall jobs are better served by the Grettz G2D Mini Cross Line Green Beam Laser at £64.99.
Is a green laser level better than red for electrical first-fix work?
Yes for most site conditions — green wavelength sits closer to the peak of human eye sensitivity so the line reads brighter under downlighters, skylights and general site lighting. Red beam units still work fine in consistently dim rooms with no natural light.
Do electricians need a laser detector with a green beam laser?
Not usually indoors, but yes for outdoor consumer unit work or long runs across bright open-plan spaces. A detector picks up the beam even when direct sunlight washes it out to the eye.
How much does a green laser level cost for tradesmen?
Compact cross-line units start around £64.99, with multi-line professional models running £179.99 to £254.99 depending on whether a tripod and pole are included. Rotary lasers for larger sites cost considerably more.
Can a green laser level be used outdoors for consumer unit positions?
Yes, but visibility drops in direct sunlight even with a green beam. Pair it with a laser detector for outdoor consumer unit relocations or use it early or late in the day when light is lower.
How accurate does a laser level need to be for socket heights?
A drift of a few millimetres over a 5m run is the threshold worth acting on for socket and switch heights, since Building Regs guidance on mounting heights leaves little margin once plaster and finishes are added. Run a wall-check before starting any job.
What's the difference between the Grettz G2D and G4D laser levels?
The Grettz G2D Mini Cross Line Green Beam Laser projects a single cross-line and suits one-wall jobs, while the Grettz G4D Green Beam Multi-Line Laser Level projects multiple lines simultaneously for faster work across bigger fit-outs. The G4D also comes as a kit with a tripod and pole included.
How often should a laser level be recalibrated?
Check accuracy before any job where a drift would be costly, and book a full calibration service annually or after any drop or knock. Units used daily on commercial sites benefit from more frequent checks than one used occasionally for domestic work.
One last thing
The wall-check takes less than a minute and it's the step electricians skip most: run the laser out 5m against a fixed mark before the first socket goes in, not after. A unit that's drifted 3-4mm over that distance will be off by far more by the time it's carried the line across three rooms — and by 2026 standards, that's the difference between a clean final inspection and a morning spent re-marking boxes.
