Digital Spirit Level for Solar Panel Frames (2026 Guide)
Aug 31, 2026
A digital spirit level for solar panel mounting frames gives installers a direct degree reading on every rail, tilt frame and ballast tray before the clamps go on, replacing the guesswork of a bubble vial with a number you can log. Solar installers work at height, against a deadline, and against a rail manufacturer's tolerance sheet — a bubble level tells you "roughly level", a digital spirit level tells you the angle.
- Grettz GL120 digital spirit level reads frame tilt in degrees — best pick for solar panel mounting frames in 2026.
- Bubble spirit levels still handle single-rail spot checks but leave no angle record for site paperwork.
- A green beam line laser beats a spirit level only when you're aligning a full array across multiple roof planes.
- Recheck every rail after final torque — clamped frames shift more than installers expect.
Why this matters for solar panel installers
Roof rafters are never as true as the plans say, and flat-roof ballast trays sit on membranes that flex under their own weight. A 1200mm digital spirit level spans a full rail section and gives you a live degree reading instead of a bubble that just says "close enough".
That matters because solar frame tolerances are set by the mounting system manufacturer, not by eye. A tilt frame installer working solo on a flat roof in 2026 doesn't have time to climb down, fetch a laser, set a tripod, and climb back up for a single rail check — the spirit level does that job at the rail, in seconds, without a second pair of hands.
Most digital spirit levels on the market read to within a tenth of a degree, which is roughly ten times tighter than you'll get eyeballing a bubble vial. On a long rail run that difference compounds — a half-degree error at one end becomes a visible dip in the panel line by the time you reach the far corner.
Check the rail line before you drill
Start with the free, manual method before any tool comes out of the case.
- Stretch a stringline or chalk line along the intended rail path to spot obvious rafter dips
- Mark the high points with a pencil so you know where packers will be needed
- Walk the roof face and note any visible sag or twist in the structure
- Photograph the line before drilling — it's your reference if a rail sits proud later
Set your frame tilt angle digitally

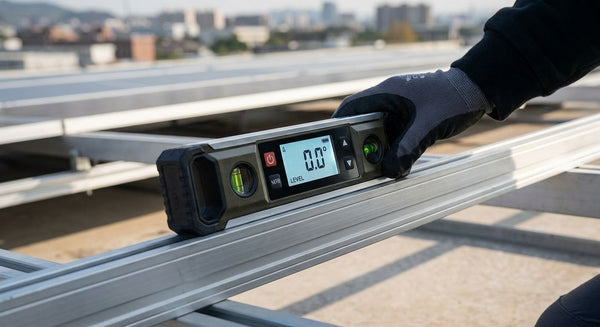

Once the rail line is marked, this is where a bubble level runs out of precision. A Grettz GL120 digital spirit level sits flush against the rail and gives you a numeric tilt reading instead of a rough bubble position.
- Zero the level against a known flat reference before the first read of the day
- Read the angle at both ends of the rail and again at the midpoint on runs over 3m
- Log the reading against the frame manufacturer's stated tolerance, not against "looks level"
- Re-read after each fixing is torqued — the rail moves slightly as it clamps down
Level ballast trays on flat roofs
Ballast systems are the case where a spirit level earns its keep over a laser — you're checking one tray at a time, close to the roof surface, not projecting a beam across open space.
- Check each tray independently before linking rows together
- Confirm the membrane hasn't crowned or dipped under the tray's own weight
- Set the first tray in a run dead level, then reference every following tray back to it
- Recheck the run once ballast blocks are loaded — weight changes the reading
Square up rows before clamping
A level rail that's out of square still throws the panel line off visually, even if every individual reading passes.
- Measure diagonals across each bay to confirm square before final clamping
- Use a surveyors tape measure for diagonal checks on larger arrays rather than a folding rule
- Mark clamp positions only after the square check passes
- Snap a stringline down the row edge as a final visual confirmation
Recheck after wind-load torque
This is the step most installers skip, and it's the one that causes callbacks.
- Re-read tilt angle on every rail once fixings are torqued to spec
- Compare against the reading taken before torque — a shift usually means an under-packed rafter
- Flag any rail more than a visible fraction out from its pre-torque reading
- Note the final reading against the job file, not just the initial setup reading
Log readings for site and warranty paperwork
A number on a screen is only useful if it ends up on record.
- Photograph the digital readout at each rail alongside the job reference
- Record tilt angle for every row, not just a sample
- Keep the log with the install file in case a warranty query comes up later
- Note the tool's last calibration date on the same record
Calibrate the tool before each install season
A spirit level that's drifted is worse than a bubble vial, because installers trust the number on the screen without questioning it.
- Check the reading against a known flat surface at the start of each season
- Rotate the level 180 degrees on the same surface — the reading should mirror, not just repeat
- Send the tool for a proper service if the drift is consistent rather than a one-off
- Keep a spare calibrated level on the van for busy install weeks
Where the frame's whole rail sits proud of the roof deck — common on tiled roofs with hook fixings — a green beam multi-line laser projects a continuous reference line across several rails at once, which a spirit level can't do on its own.
Digital spirit level vs the alternatives for solar mounting frames
| Option | Best for | Key limitation |
|---|---|---|
| Standard bubble spirit level | Quick single-rail spot checks | No digital angle readout, no log for paperwork |
| Smartphone level app | Fast checks with no extra kit | Accuracy drifts with phone case or mount |
| Grettz GL120 digital spirit level | Frame tilt angle and site logging | Needs a flat contact face; not for long spans between rows |
| Grettz G4D green beam multi-line laser | Aligning a full array across several rails | Needs a stable mount; overkill for a single rail check |
Verdict: for individual rail and ballast tray checks, the Grettz GL120 digital spirit level wins on speed and record-keeping — bring a line laser out only when you're aligning a whole array, not a single frame.
The mounting hardware itself matters just as much as the levelling tool — how the rail clamps and hooks are specified changes how much tolerance you're working with in the first place, which is why installers cross-reference solar panel mounting hardware before they commit to a fixing pattern on a new roof type.
Common mistakes solar installers make with spirit levels
- Trusting the roof line as the datum. Rafters sag and twist; a level reading off a bent line is a level reading of the wrong surface.
- Skipping the mid-span check on long rails. A rail can read level at both ends and still bow in the middle.
- Never rechecking after torque. Clamping a rail down changes the angle slightly — the pre-torque reading isn't the final reading.
- Using an analog bubble level for ballast trays. Flat-roof membranes flex enough that a bubble reading is too coarse to catch a real dip.
- Never zeroing the tool. A digital spirit level that's drifted off true will give a confident, wrong number every single time — worse than a bubble vial you'd naturally distrust.
A digital spirit level for solar panel mounting frames is only as good as its last calibration check — that's the one line worth remembering from all of this.
FAQ
What's the best digital spirit level for solar panel mounting frames?
The Grettz GL120 1200mm digital spirit level is built for frame rail and ballast tray checks, spanning a full rail section with a live degree readout. Its 1200mm length covers most standard rail spacings in one placement.
Is a digital spirit level better than a laser for solar frames?
For single rail and ballast tray checks, yes — a digital spirit level is faster and doesn't need a tripod or clear line of sight. A rotary or line laser only pulls ahead when you're aligning several rails across a full array at once.
How accurate is a digital spirit level compared to a bubble level?
Digital spirit levels commonly read to within a tenth of a degree, roughly ten times tighter than eyeballing a bubble vial. On a long rail run that precision stops a small angle error compounding into a visible dip.
Do solar installers need to calibrate a digital spirit level?
Yes — check the tool against a known flat surface at the start of each install season, and rotate it 180 degrees on the same surface to confirm the reading mirrors rather than just repeats. Consistent drift means the tool needs a proper service.
Can a digital spirit level check a flat roof ballast tray?
Yes, this is where it earns its keep over a laser — each tray is checked independently, close to the roof surface, with no beam or tripod needed. Recheck once ballast blocks are loaded, since the added weight changes the reading.
What size digital spirit level is best for rail checks?
A 1200mm digital spirit level spans most standard rail sections in a single placement, while a 600mm model suits tighter spaces or shorter rail runs. Both give the same degree readout, just over a different span.
Should I log tilt angle readings for every solar install?
Yes — logging the digital readout against each rail and the job reference gives you a record for warranty queries and site inspection, not just a memory of "it looked level". Photograph the screen alongside the job file rather than relying on notes alone.
One last thing
The rail that fails a warranty inspection is almost never the one that was never checked — it's the one that was checked once, before torque, and never checked again. Build the re-check after clamping into your routine and you'll catch the shift a digital spirit level would otherwise never get the chance to flag.
