Laser Levels for Garage Conversions: Match the Tool to the Stage

A garage conversion moves through several different measuring jobs: floor, framing, openings, ceiling and final fit-out. The same tool does not automatically make sense at every stage.

Floor and datum work

If the project involves substantial floor-level work over a larger area, a rotary laser and receiver can make height comparisons easier. If the slab is already suitable and you only need interior layout, bringing in a rotary may be unnecessary.

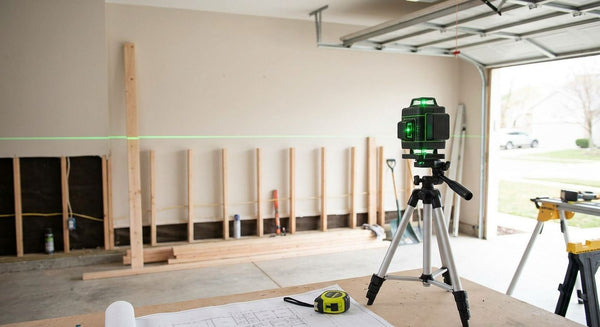

Framing and room layout

This is where a multi-line laser such as the G4D becomes useful. Four 360° green planes can provide horizontal and vertical references for stud walls, ceilings, door openings and service layouts without repeatedly moving the laser.

Smaller conversions

For a single wall or simpler DIY conversion, the G2D may provide all the reference required. Smaller is often easier to position in a cluttered working area.

Direct checks

Use a spirit or digital level to check the stud, frame or component directly. A projected reference and a contact measurement solve different problems.

Green beam and an open garage door

Green can appear more visible to the human eye, but strong daylight through a fully open garage door can still make a line difficult to see. Don't treat beam colour as a substitute for sensible positioning.

The bottom line

Match the tool to the conversion stage: rotary where receiver-based level transfer is genuinely useful, multi-line for room layout, compact cross-line for simpler work and a physical level for the component in your hands.
